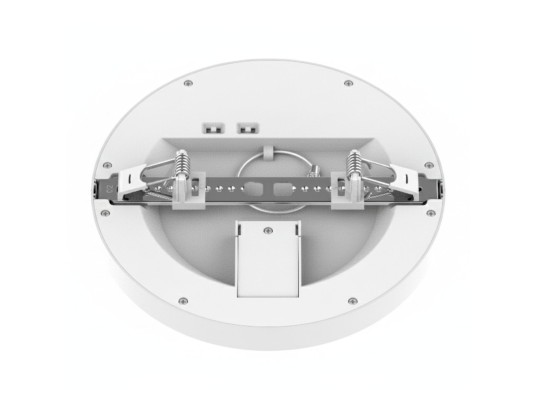

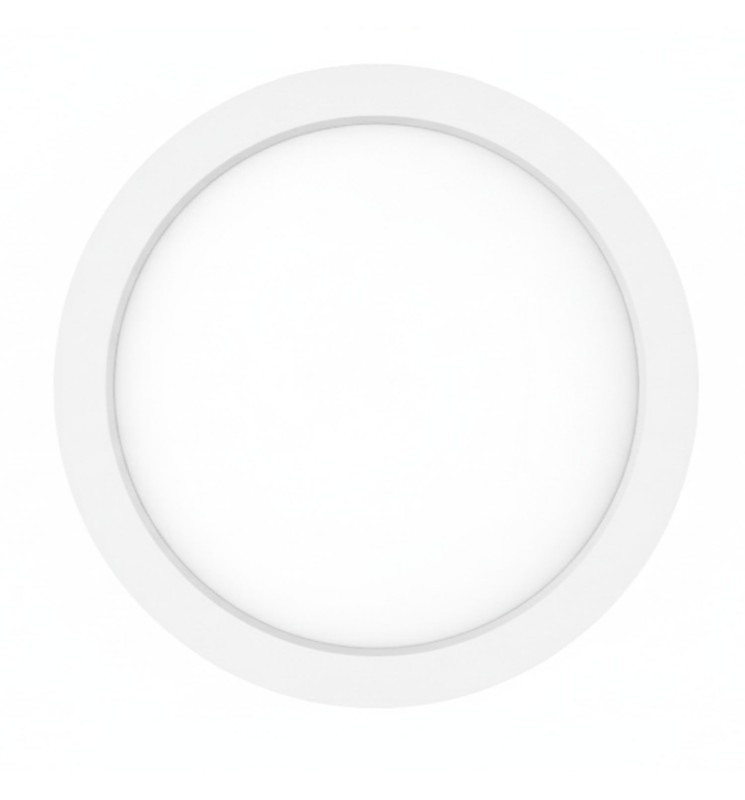

BREVA-9/18W-2CCT-IP54F-SEMI RECESSED/SURFACE MOUNTED

Data sheet

IP

IP20, IP44 facade

IRC

>80

Dimmable

Non

IK

IK06

Energy efficiency class

F

Warranty (years)

5

Total power (W)

9 / 18

Electric class

II

Power factor

>0.9

Rated voltage

230V

Light beam spread (°)

110

Luminous flux (lm)

2100, 2000

Color temperature

4000K, 3000K

Safety group (EN62778)

RG0

Driver included

Yes

Including the light source

Yes

Light source type

SMD

Tiltable

Non

Height (mm)

22

Weight (kg)

0

Min. recessed diameter (mm)

65

Max. recessed diameter (mm)

185

Recessed diameter

138, 70, 113, 154, 84, 129, 170, 97, 139, 71, 114, 155, 85, 171, 98, 140, 72, 115, 156, 65, 172, 99, 141, 73, 116, 157, 66, 173, 100, 101, 142, 74, 117, 158, 67, 174, 102, 143, 75, 118, 159, 86, 175, 103, 144, 76, 119, 160, 87, 176, 104, 145, 68, 120, 161, 88, 177, 105, 146, 69, 121, 162, 89, 130, 178, 106, 147, 77, 122, 163, 90, 131, 179, 180, 107, 148, 78, 123, 164, 91, 132, 181, 108, 149, 79, 124, 165, 92, 133, 182, 109, 150, 80, 125, 166, 93, 134, 183, 110, 151, 81, 126, 167, 94, 135, 184, 111, 152, 82, 127, 168, 95, 136, 185, 112, 153, 83, 128, 169, 96, 137

Product color

White

Use temperature range

-20°... +40°C

Connection type

Box with fast connector (L-N-PE)

IP (value)

20, 44

Body materials

PC

Diffuser materials

PC, PMMA

Life span duration

L80 à 25° : 50 000 h

Recessed depth under BA13 (mm)

20

Recoverable

Non recouvrable

Network frequency

50Hz

Initial SDCM

SDCM< 6
