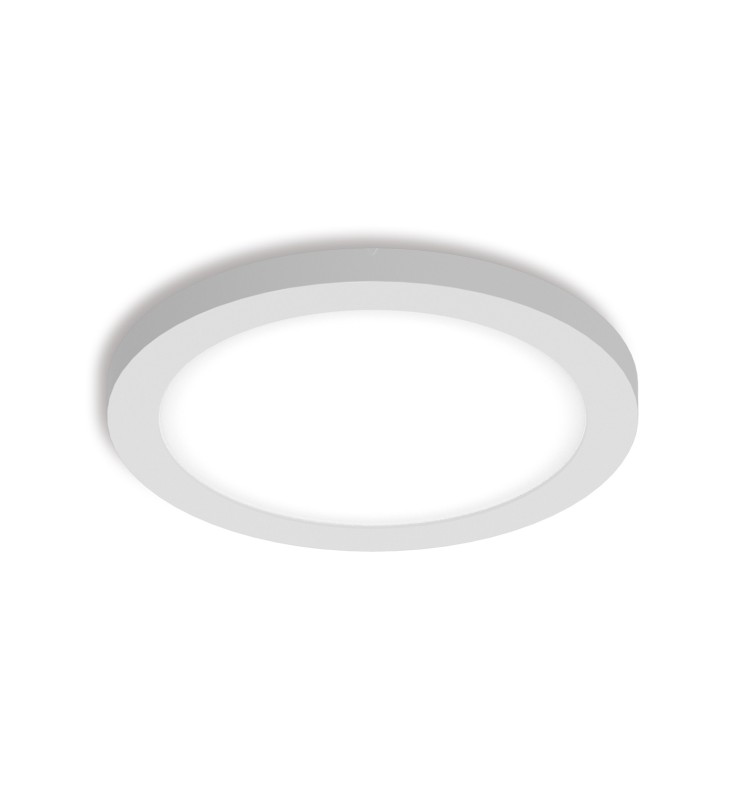

TF127-DOWNLIGHT 3CCT SEMI RECESSEDSURFACE MOUNTED 18W-IP44 FRONT
BL02182003

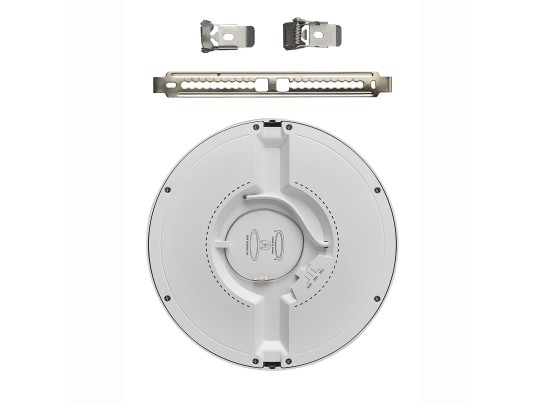

Downlight with 3 temperature colors. Can be installed both surface-mounted and recessed using the included accessories. Safety clip included
BL02182003
Data sheet
- Yes
- IP
- IP44
- IRC
- >80
- Dimmable
- Non
- IK
- IK06
- Energy efficiency class
- F
- Warranty (years)
- 2
- Total power (W)
- 18
- Electric class
- II
- Power factor
- >0.9
- Rated voltage
- 230V
- Light beam spread (°)
- 110
- Luminous flux (lm)
- 1500, 1600
- Color temperature
- 4000K, 3000K, 6500K
- Safety group (EN62778)
- RG0
- Driver included
- Yes
- Including the light source
- Yes
- Light source type
- SMD
- Tiltable
- Yes
- Length (mm)
- 1135
- Height (mm)
- 22
- Weight (kg)
- 0.43
- Min. recessed diameter (mm)
- 55
- Max. recessed diameter (mm)
- 175
- Recessed diameter
- 171, 99, 139, 79, 115, 155, 65, 172, 100, 140, 80, 116, 156, 66, 173, 101, 141, 81, 117, 157, 67, 174, 102, 142, 82, 118, 158, 86, 175, 103, 143, 83, 119, 159, 87, 70, 104, 144, 84, 120, 160, 88, 60, 71, 105, 145, 85, 121, 161, 89, 130, 72, 106, 146, 55, 122, 162, 90, 131, 73, 107, 147, 56, 123, 163, 91, 92, 132, 74, 108, 148, 57, 124, 164, 93, 133, 75, 109, 149, 58, 125, 165, 94, 134, 76, 110, 150, 59, 126, 166, 95, 135, 68, 111, 151, 61, 127, 167, 96, 136, 69, 112, 152, 62, 128, 168, 97, 137, 77, 113, 153, 63, 129, 169, 170, 98, 138, 78, 114, 154, 64
- Product color
- White
- Use temperature range
- -20°... +45°C
- Connection type
- Fil à connecter
- IP (value)
- 44
- Body materials
- PC
- Diffuser materials
- PC
- Life span duration
- L70 à 25° : 30 000 h
- Cable length
- 30 cm
- Recessed depth under BA13 (mm)
- 20
- Recoverable
- Non concerné
- Network frequency
- 50Hz
- Initial SDCM
- SDCM< 6
Downlight with 3 temperature colors. Can be installed both surface-mounted and recessed using the included accessories. Safety clip included
