DOWNLIGHT-SQUARE-20W-PRISM-3CCT-3000K-4000K-5700K
BL02202002

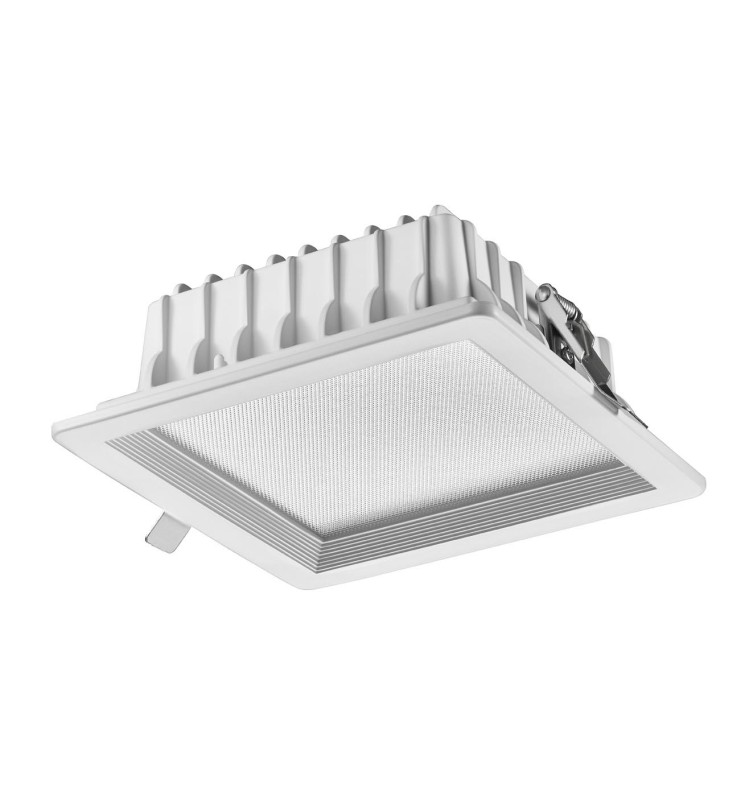

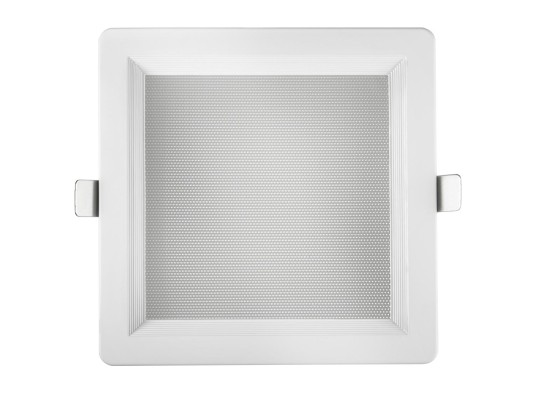

Square downlight with prismatic diffuser. Very low glare with a slight setback for the diffuser. Separate power supply with 3 temperature colors possible to change on the product!
BL02202002
Data sheet
- Yes
- IP
- IP40, IP44 facade
- IRC
- >80
- Dimmable
- Non
- IK
- IK06
- Energy efficiency class
- D
- Warranty (years)
- 3
- Total power (W)
- 20
- Electric class
- III, II with power supply
- Power factor
- >0.95
- Rated voltage
- 230V
- Light beam spread (°)
- 90
- Luminous flux (lm)
- 2000, 2150
- Color temperature
- 4000K, 3000K, 3500K
- Safety group (EN62778)
- RG0
- Unified Glare Rating (UGR)
- < 19
- Driver included
- Yes
- Including the light source
- Yes
- Tiltable
- Non
- Length (mm)
- 180
- Width (mm)
- 180
- Height (mm)
- 68
- Weight (kg)
- 0.72
- Min. recessed diameter (mm)
- 156
- Max. recessed diameter (mm)
- 165
- Recessed diameter
- 162, 163, 164, 165, 156, 157, 158, 159, 160, 161
- Product color
- White
- Use temperature range
- -20°... +45°C
- Connection type
- fast connector
- IP (value)
- 40, 44
- Body materials
- Aluminium
- Diffuser materials
- PC
- Life span duration
- L80 à 25° : 50 000 h
- Cable length
- 10 cm
- Recessed depth under BA13 (mm)
- 68
- Recoverable
- Non recouvrable
- Network frequency
- 50Hz
- Initial SDCM
- SDCM< 4
Square downlight with prismatic diffuser. Very low glare with a slight setback for the diffuser. Separate power supply with 3 temperature colors possible to change on the product!
