WINDOW 40W-3CCT-BL
  • WINDOW 40W-3CCT-BL
  • WINDOW 40W-3CCT-BL
  • WINDOW 40W-3CCT-BL
  • WINDOW 40W-3CCT-BL
  • WINDOW 40W-3CCT-BL

WINDOW 40W-3CCT-BL

BL02402010

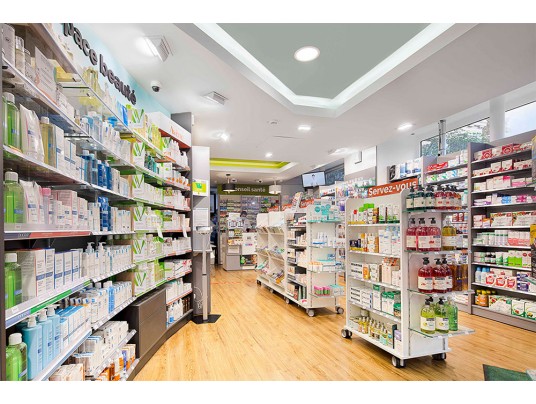

Adjustable high-power recessed light, ideal for shop windows and for showcasing products on shelves. Adjustable color temperature on the product to adapt perfectly to the desired atmosphere.
BL02402010
BE-LED

Data sheet

Yes
IP
IP20
IRC
>80
Dimmable
Non
IK
IK06
Energy efficiency class
D
Warranty (years)
5
Total power (W)
40
Electric class
III, II with power supply
Power factor
>0.9
Rated voltage
230V
Light beam spread (°)
90
Luminous flux (lm)
4100, 3800, 4200
Color temperature
4000K, 3000K, 5700K
Safety group (EN62778)
RG1
Driver included
Yes
Including the light source
Yes
Light source type
SMD
Tiltable
Yes
Length (mm)
156
Width (mm)
246
Height (mm)
144
Weight (kg)
2.26
Min. recessed diameter (mm)
130
Max. recessed diameter (mm)
225
Recessed diameter
169, 217, 137, 185, 153, 201, 170, 218, 138, 186, 154, 202, 171, 219, 139, 187, 155, 203, 172, 220, 140, 188, 156, 204, 173, 221, 141, 189, 157, 205, 174, 222, 142, 190, 158, 206, 175, 223, 143, 191, 159, 207, 176, 224, 144, 192, 160, 208, 177, 225, 145, 193, 161, 209, 210, 130, 178, 146, 194, 162, 211, 131, 179, 147, 195, 163, 212, 132, 180, 148, 196, 164, 213, 133, 181, 149, 197, 165, 214, 134, 182, 150, 198, 166, 215, 135, 183, 151, 199, 167, 168, 216, 136, 184, 152, 200
Product color
White
Use temperature range
-20°... +45°C
Connection type
Bornier avec repiquage
IP (value)
20
Body materials
Aluminium
Diffuser materials
Verre trempé
Life span duration
L80 à 25° : 50 000 h
Recessed depth under BA13 (mm)
150
Recoverable
Non recouvrable
Dimmable values
Dali
Tilt angle
90
Network frequency
50Hz
Initial SDCM
SDCM< 5
