TF070-SLIM ECO-12W-IP20-3000k

BL02122002

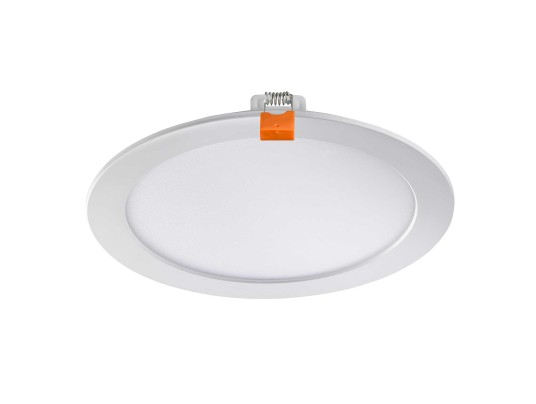

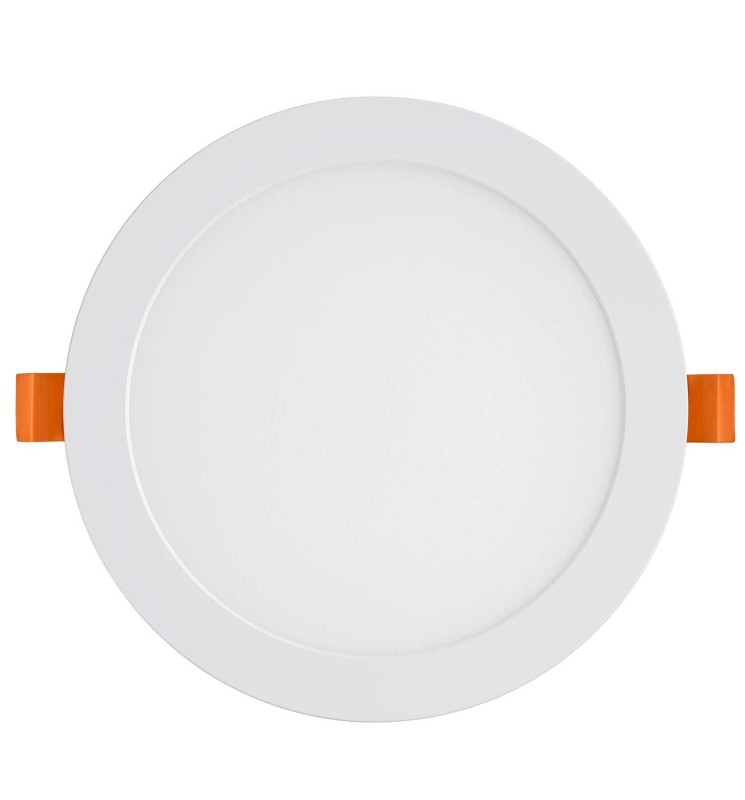

Economical flat downlight with direct opal diffuser 230 Volts.
BL02122002
BE-LED

Data sheet

Yes
IP
IP20
IRC
>80
Dimmable
Non
IK
IK06
Energy efficiency class
F
Warranty (years)
2
Total power (W)
12
Electric class
II
Power factor
>0.9
Rated voltage
230V
Light beam spread (°)
110
Luminous flux (lm)
1000
Color temperature
3000K
Safety group (EN62778)
RG0
Driver included
Yes
Including the light source
Yes
Light source type
SMD
Tiltable
Non
Height (mm)
24
Weight (kg)
0.22
Min. recessed diameter (mm)
155
Max. recessed diameter (mm)
160
Recessed diameter
157, 158, 159, 160, 155, 156
Product color
White
Use temperature range
-20... +45°
Connection type
Box with fast connector (L-PE-N)
IP (value)
20
Body materials
PC
Diffuser materials
PC
Life span duration
L70 à 25° : 25 000 h
Cable length
30 cm
Recessed depth under BA13 (mm)
30
Recoverable
Non recouvrable
Network frequency
50Hz
Initial SDCM
SDCM< 6
