TF069-SLIM ECO-12W-IP20-4000k

BL02122001

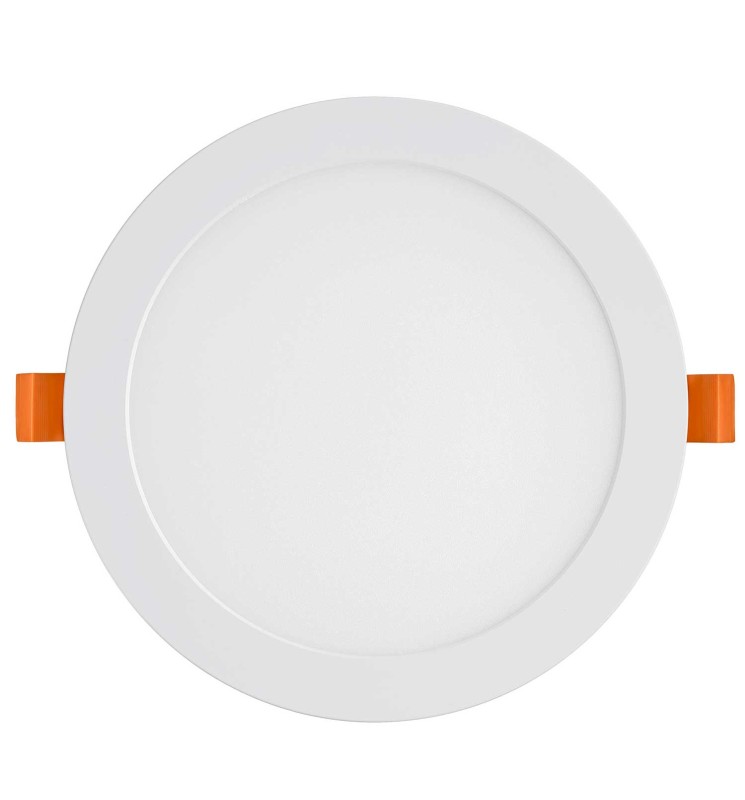

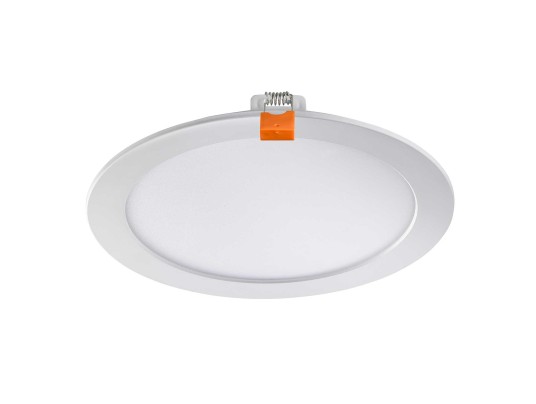

Economic flat downlight with direct opal diffuser 230 Volts. Corner LED wall light 110
BL02122001
BE-LED

Data sheet

IP
IP20
IRC
>80
Dimmable
Non
IK
IK08
Energy efficiency class
F
Warranty (years)
2
Total power (W)
12
Electric class
II
Power factor
>0.9
Rated voltage
230V
Light beam spread (°)
110
Luminous flux (lm)
1040
Color temperature
4000K
Safety group (EN62778)
RG0
Unified Glare Rating (UGR)
< 22
Driver included
Yes
Including the light source
Yes
Light source type
SMD
Tiltable
Non
Length (mm)
0
Width (mm)
320
Width (mm)
0
Height (mm)
24
Weight (kg)
0.22
Min. recessed diameter (mm)
155
Max. recessed diameter (mm)
160
Recessed diameter
155, 156, 157, 158, 159, 160
Product color
White
Use temperature range
-20°... +40°C
Connection type
Box with fast connector (L-PE-N)
IP (value)
20
Body materials
PC
Diffuser materials
PS
Life span duration
L70 à 25° : 25 000 h
Cable length
30 cm
Recessed depth under BA13 (mm)
200
Recoverable
Non recouvrable
Network frequency
50Hz
Initial SDCM
SDCM< 4
Max. lamp per B10A circuit breaker
15
Max. lamp per B16A circuit breaker
20
Max. lamp per C16A circuit breaker
30
UKCA certified
Yes
