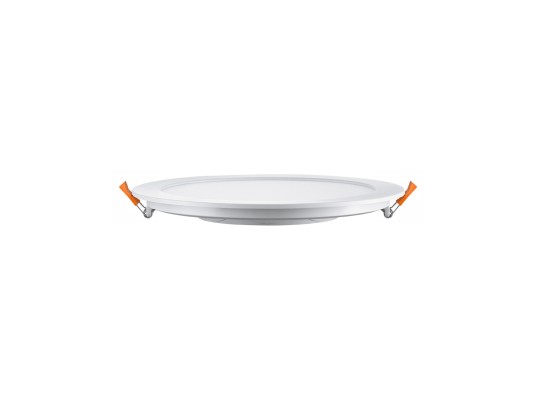

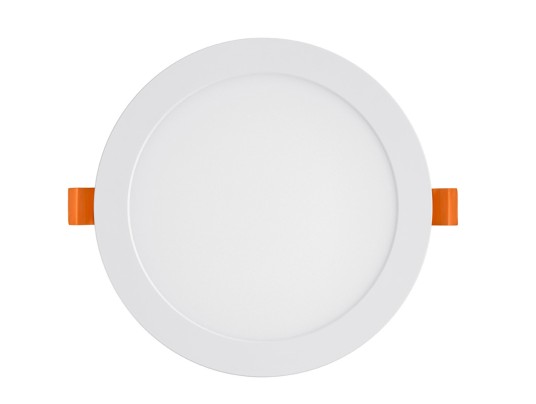

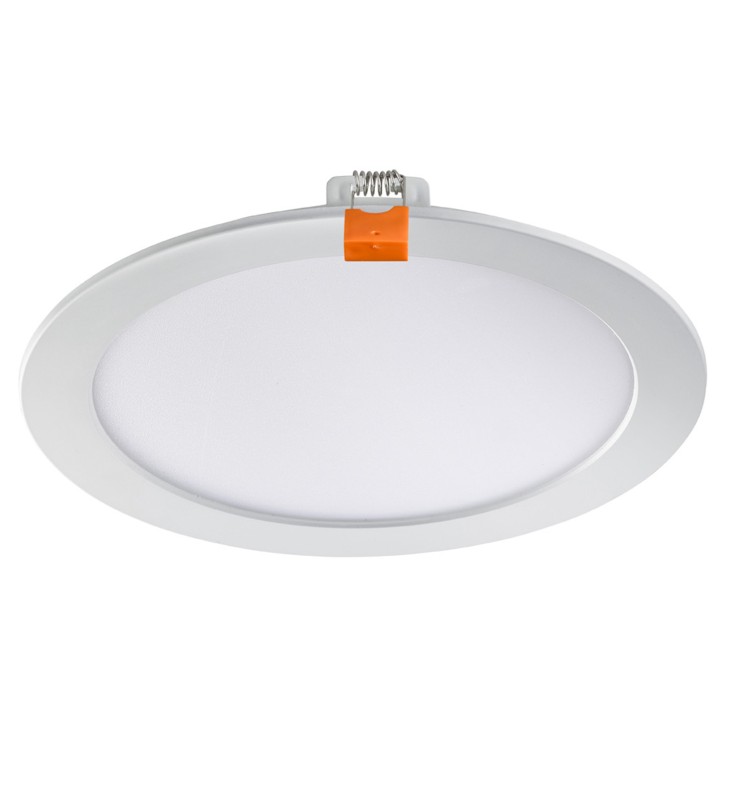

TF072-SLIM ECO-18W-IP20-3000k
BL02182002
Economical flat downlight with direct opal diffuser 230 Volts. economical low thickness. Ideal for circulation and common areas
BL02182002
Data sheet
- IP
- IP20
- IRC
- >80
- Dimmable
- Non
- IK
- IK08
- Energy efficiency class
- F
- Warranty (years)
- 2
- Total power (W)
- 18
- Electric class
- II
- Power factor
- >0.9
- Rated voltage
- 230V
- Light beam spread (°)
- 110
- Luminous flux (lm)
- 1600
- Color temperature
- 3000K
- Safety group (EN62778)
- RG0
- Driver included
- Yes
- Including the light source
- Yes
- Light source type
- SMD
- Tiltable
- Non
- Height (mm)
- 24
- Weight (kg)
- 0.36
- Min. recessed diameter (mm)
- 205
- Max. recessed diameter (mm)
- 215
- Recessed diameter
- 208, 209, 210, 211, 212, 213, 214, 215, 205, 206, 207
- Product color
- White
- Use temperature range
- -20°... +45°C
- Connection type
- Box with fast connector (L-PE-N)
- IP (value)
- 20
- Body materials
- PC
- Diffuser materials
- PC
- Life span duration
- L70 à 25° : 25 000 h
- Cable length
- 30 cm
- Recessed depth under BA13 (mm)
- 30
- Recoverable
- Non recouvrable
- Network frequency
- 50Hz
- Initial SDCM
- SDCM< 3
Economical flat downlight with direct opal diffuser 230 Volts. economical low thickness. Ideal for circulation and common areas
