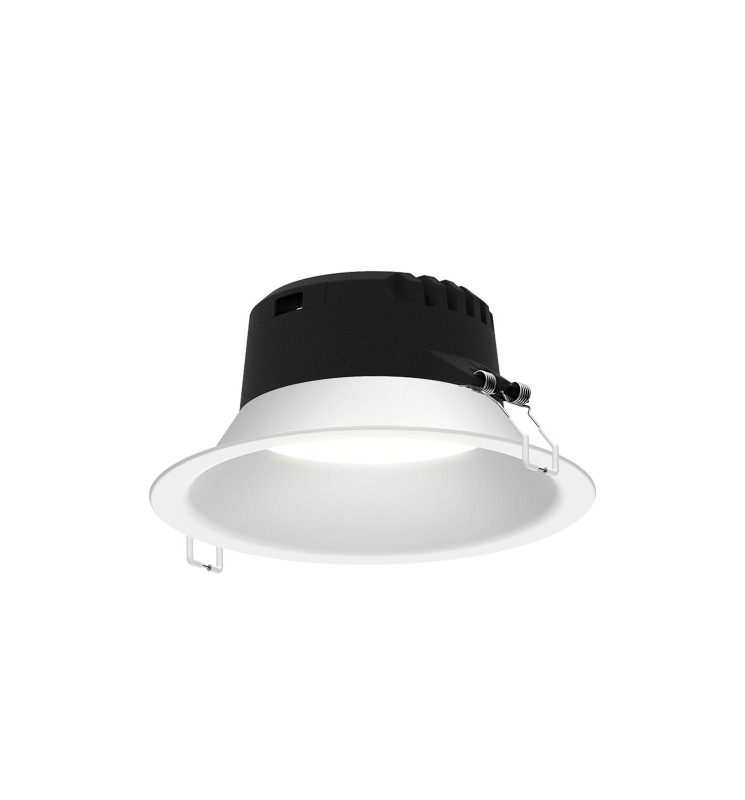

ZEF DOWNLIGHT-12W-4000K-IP20

Data sheet

IP

IP20

IRC

>80

Dimmable

Non

IK

IK04

Energy efficiency class

F

Warranty (years)

3

Total power (W)

12

Electric class

II

Power factor

>0.9

Rated voltage

230V

Light beam spread (°)

100

Luminous flux (lm)

1200

Color temperature

4000K

Safety group (EN62778)

RG0

Driver included

Yes

Tiltable

Non

Height (mm)

98

Weight (kg)

0.34

Min. recessed diameter (mm)

150

Max. recessed diameter (mm)

160

Recessed diameter

150, 151, 152, 153, 154, 155, 156, 157, 158, 159, 160

Product color

White

Use temperature range

-20°... +45°C

Connection type

Bornier avec repiquage

IP (value)

20

Body materials

Aluminium

Diffuser materials

PC

Life span duration

L70 à 25° : 50 000 h

Diameter (mm)

225

Recoverable

Isolant rouleau

Network frequency

50Hz

Initial SDCM

SDCM< 5
