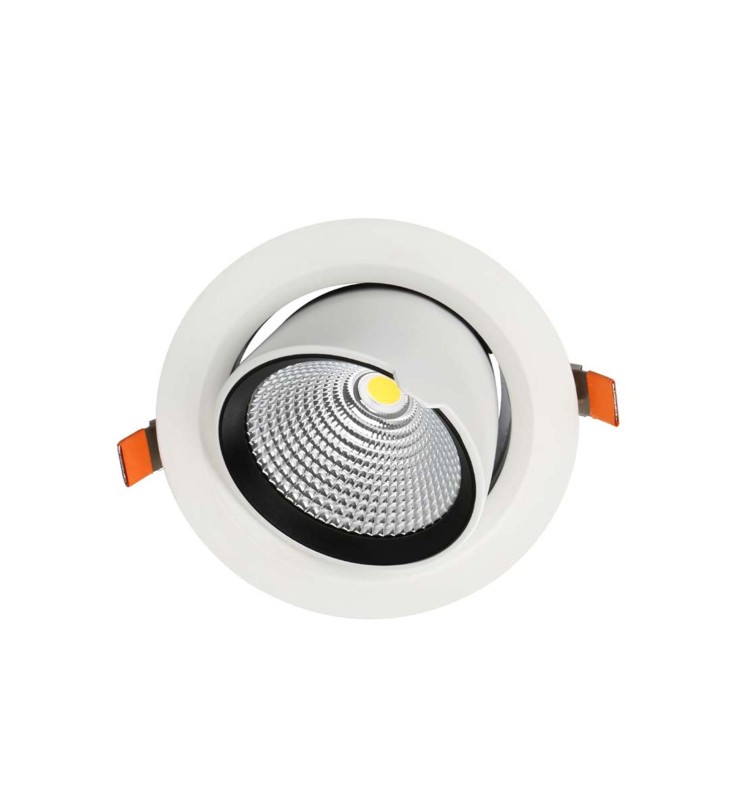

THOR 1 15W-36-3000K-ROUND-WHITE- DIMM

TR01152001
Snail type 360° adjustable accent led downlight.
TR01152001
BE-LED

Data sheet

Yes
IP
IP20
IRC
>85
Dimmable
Yes
IK
IK06
Energy efficiency class
E
Warranty (years)
3
Total power (W)
15
Electric class
III, II with power supply
Power factor
>0.9
Rated voltage
230V
Light beam spread (°)
36
Luminous flux (lm)
1200
Color temperature
3000K
Safety group (EN62778)
RG1
Driver included
Yes
Including the light source
Yes
Light source type
COB
Tiltable
Yes
Height (mm)
102
Weight (kg)
0.56
Min. recessed diameter (mm)
120
Max. recessed diameter (mm)
130
Recessed diameter
121, 122, 123, 124, 125, 126, 127, 128, 129, 130, 120
Product color
White
Use temperature range
-25... +45°
Connection type
Fast connect
IP (value)
20
Body materials
Aluminium
Life span duration
L80 à 25° : 50 000 h
Cable length
10 cm
Recessed depth under BA13 (mm)
110
Recoverable
Non recouvrable
Dimmable values
Triac
Tilt angle
45
Network frequency
50Hz
Max. lamp per B10A circuit breaker
30
Max. lamp per B16A circuit breaker
35
Max. lamp per C16A circuit breaker
40
