VISUAL-50W-IP54-3CCT-3 POWER
BL02505412

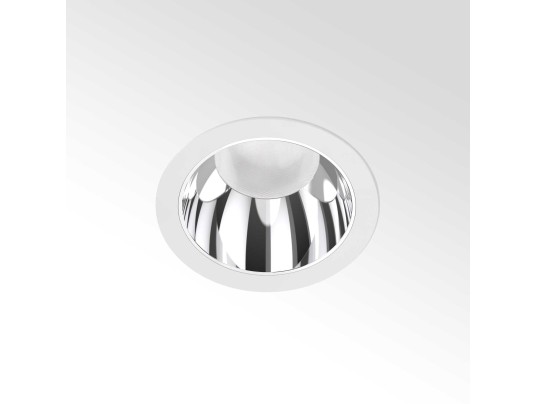

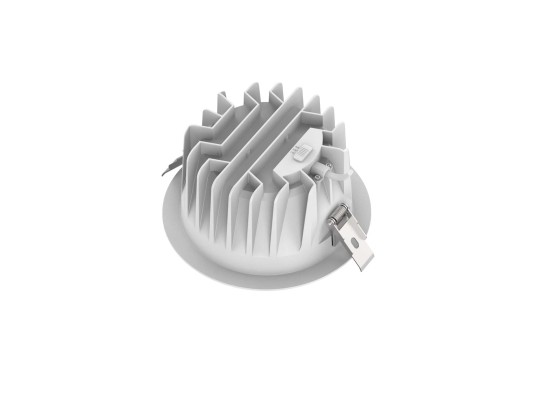

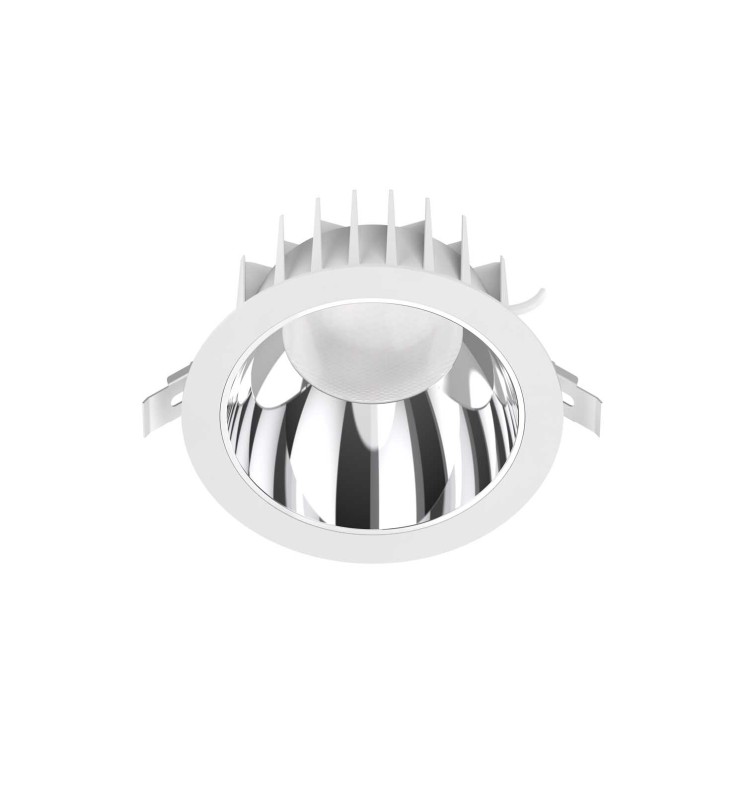

Low glare LED downlight, 3CCT and IP54, ideal for high ceilings: showrooms, stores, concessions...
Visual range
Visual range
BL02505412
Data sheet
- Yes
- IP
- IP20, IP54 facade
- IRC
- >80
- Dimmable
- Non
- IK
- IK06
- Energy efficiency class
- C
- Warranty (years)
- 5
- Total power (W)
- 50
- Electric class
- III, II with power supply
- Power factor
- >0.9
- Rated voltage
- 230V
- Light beam spread (°)
- 63
- Luminous flux (lm)
- 4800, 4300, 4850
- Color temperature
- 4000K, 3000K, 5700K
- Safety group (EN62778)
- RG1
- Unified Glare Rating (UGR)
- < 19
- Driver included
- Non
- Including the light source
- Yes
- Light source type
- SMD
- Tiltable
- Non
- Height (mm)
- 123
- Weight (kg)
- 1.62
- Min. recessed diameter (mm)
- 230
- Max. recessed diameter (mm)
- 260
- Recessed diameter
- 236, 252, 237, 253, 238, 254, 239, 255, 240, 256, 241, 257, 242, 258, 243, 259, 244, 260, 245, 230, 246, 231, 247, 232, 248, 233, 249, 234, 250, 235, 251
- Product color
- White
- Use temperature range
- -25°... +45°C
- Connection type
- Connecteur rapide avec repiquage
- IP (value)
- 20, 54
- Body materials
- Aluminium
- Diffuser materials
- PC
- Life span duration
- L80 à 25° : 50 000 h
- Recessed depth under BA13 (mm)
- 130
- Recoverable
- Non recouvrable
- Network frequency
- 50Hz
- Initial SDCM
- SDCM< 3
