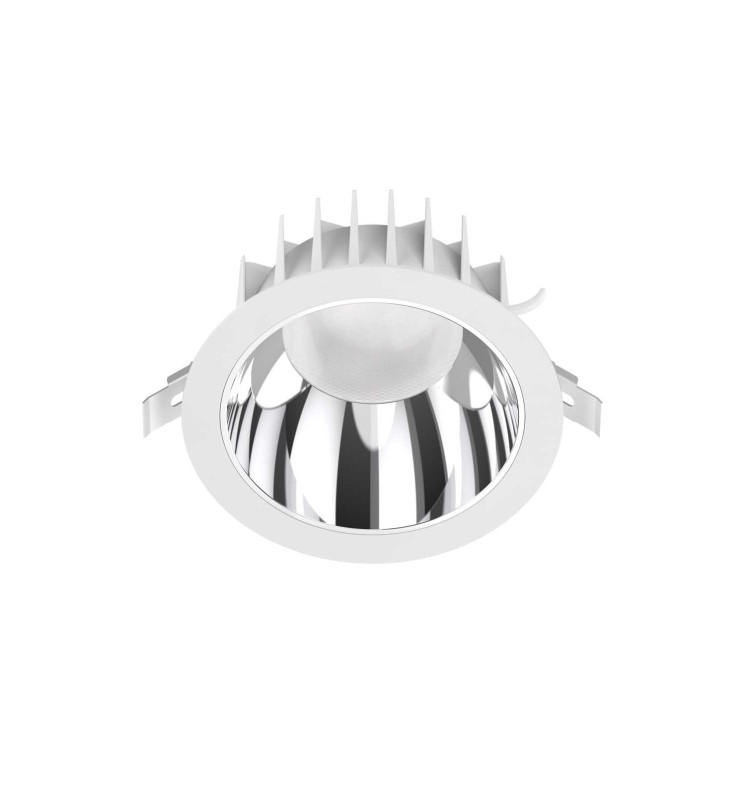

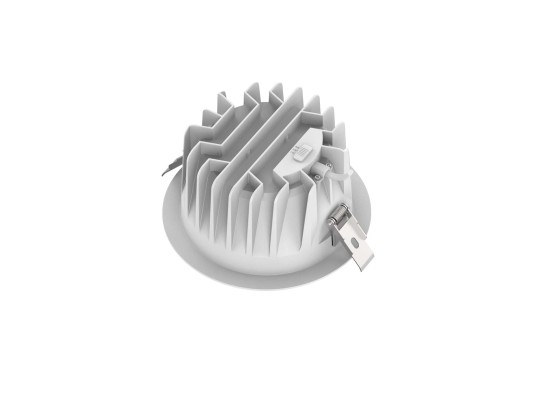

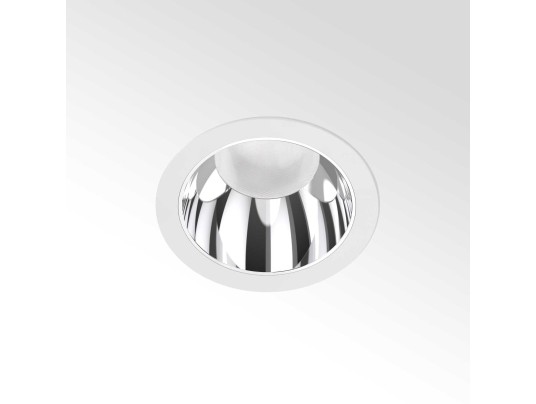

VISUAL DOWNLIGHT-8.75W-3000K-IP54

BL02102096
Low glare led downlight, UGR<19 3000K IP54, ideal for the service sector: corridors, meeting rooms, schools. Option in Dali.
Visual range
BL02102096
BE-LED

Data sheet

Yes
Yes
IP
IP20, IP54 facade
IRC
>80
Dimmable
Non
IK
IK06
Energy efficiency class
C
Warranty (years)
5
Total power (W)
9
Electric class
III, II with power supply
Power factor
>0.9
Rated voltage
230V
Light beam spread (°)
80
Luminous flux (lm)
1000
Color temperature
3000K
Safety group (EN62778)
RG1
Unified Glare Rating (UGR)
< 19
Driver included
Non
Including the light source
Yes
Light source type
SMD
Tiltable
Non
Height (mm)
77
Weight (kg)
0.35
Min. recessed diameter (mm)
125
Max. recessed diameter (mm)
135
Recessed diameter
128, 129, 130, 131, 132, 133, 134, 135, 125, 126, 127
Product color
White
Use temperature range
-25°... +45°C
Connection type
Bornier avec repiquage
IP (value)
20, 54
Body materials
Aluminium
Diffuser materials
PC
Life span duration
L80B20 à 25° : 50 000 h
Recessed depth under BA13 (mm)
80
Recoverable
Non recouvrable
Network frequency
50Hz
Initial SDCM
SDCM< 3
