LINE 11W-3000K-36-DIM-BLACK
  • LINE 11W-3000K-36-DIM-BLACK
  • LINE 11W-3000K-36-DIM-BLACK

LINE 11W-3000K-36-DIM-BLACK

BL02112002

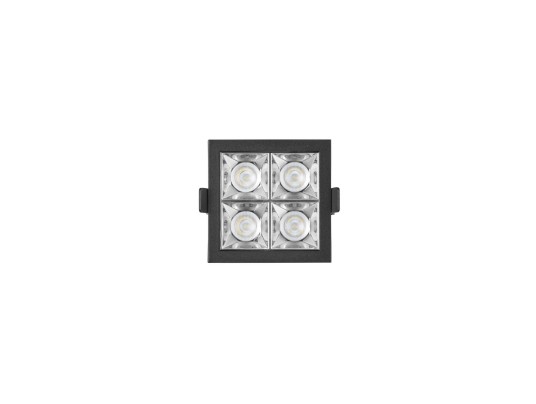

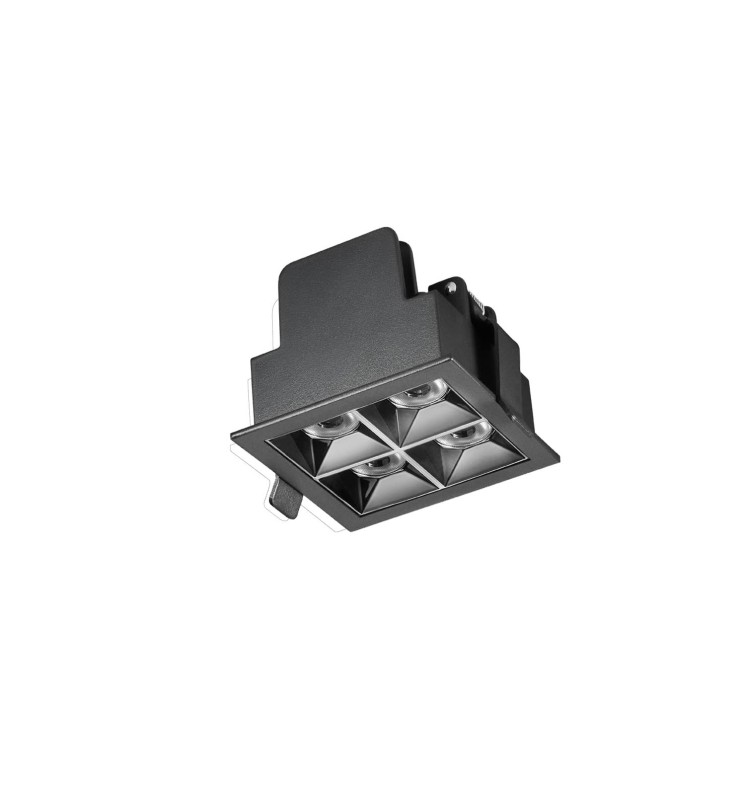

Recessed led downlight, square white low luminance black. contemporary and architectural, it is dimmable on triac. low glare UGR<19
LED ceiling light, architectural recessed, triac dimmable
BL02112002
BE-LED

Data sheet

Yes
Yes
IP
IP40
IRC
>90
Dimmable
Yes
IK
IK06
Energy efficiency class
F
Warranty (years)
3
Total power (W)
11
Electric class
III, II with power supply
Power factor
>0.9
Rated voltage
230V
Light beam spread (°)
36
Luminous flux (lm)
580
Color temperature
3000K
Safety group (EN62778)
RG1
Unified Glare Rating (UGR)
< 19
Driver included
Yes
Including the light source
Yes
Tiltable
Non
Length (mm)
75
Width (mm)
75
Height (mm)
51
Weight (kg)
0.26
Min. recessed diameter (mm)
67
Max. recessed diameter (mm)
67
Recessed diameter
67
Product color
Black
Use temperature range
-20°... +45°C
Connection type
Connector on the product
IP (value)
40
Body materials
Aluminium
Diffuser materials
PC
Life span duration
L70 à 25° : 50 000 h
Recessed depth under BA13 (mm)
60
Recoverable
Non recouvrable
Dimmable values
Triac
Network frequency
50Hz
Initial SDCM
SDCM< 4
