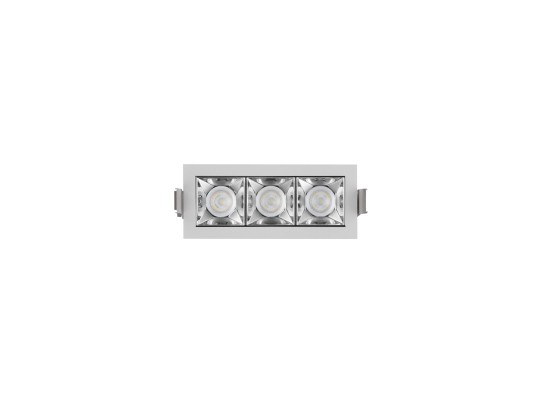

LINE 9W-3000K-36-DIM-WHITE

BL02092001
9W architectural downlight. Contemporary atmosphere for this dimmable low-luminance downlight which complements the other "LINE" products. UGR 19
BL02092001
BE-LED

Data sheet

Yes
Yes
IP
IP40
IRC
>90
Dimmable
Yes
IK
IK06
Energy efficiency class
F
Warranty (years)
3
Total power (W)
9
Electric class
II with power supply, III
Power factor
>0.9
Rated voltage
230V
Light beam spread (°)
36
Luminous flux (lm)
480
Color temperature
3000K
Safety group (EN62778)
RG1
Unified Glare Rating (UGR)
< 19
Driver included
Yes
Including the light source
Yes
Light source type
SMD
Tiltable
Non
Length (mm)
105
Width (mm)
45
Height (mm)
51
Weight (kg)
0.24
Min. recessed diameter (mm)
37
Max. recessed diameter (mm)
97
Recessed diameter
46, 81, 67, 37, 82, 86, 87, 60, 38, 83, 88, 70, 39, 84, 89, 71, 40, 85, 90, 72, 41, 55, 91, 73, 42, 56, 92, 74, 47, 57, 93, 75, 48, 58, 94, 76, 49, 59, 95, 68, 50, 61, 96, 69, 51, 62, 97, 77, 52, 63, 43, 78, 53, 64, 44, 79, 54, 65, 45, 80, 66
Product color
White
Use temperature range
-20... +45°
Connection type
Connector on the product
IP (value)
40
Body materials
Aluminium
Diffuser materials
PC
Life span duration
L70 à 25° : 50 000 h
Recessed depth under BA13 (mm)
60
Recoverable
Non recouvrable
Dimmable values
Triac
Network frequency
50Hz
Initial SDCM
SDCM< 4
