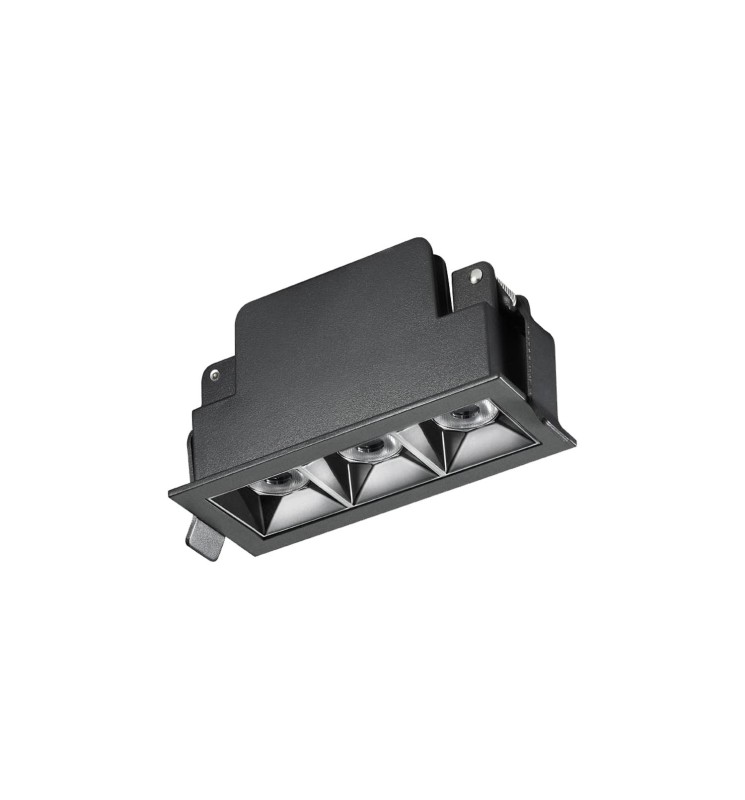

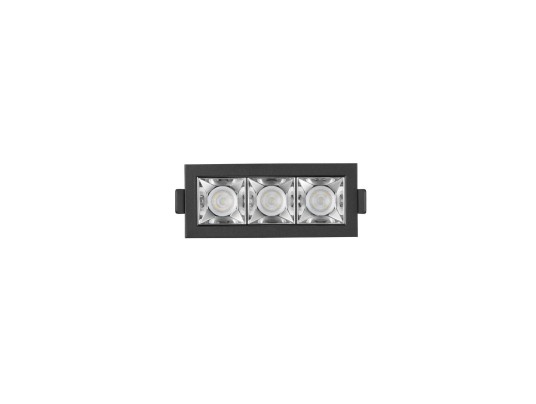

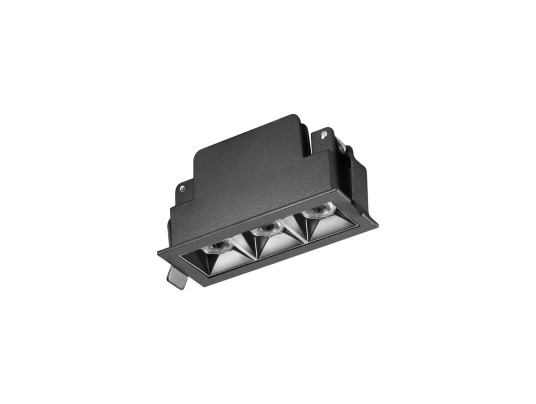

LINE 9W-3000K-36-DIM-BLACK
BL02092002
9W architectural downlight. Contemporary atmosphere for this low luminance downlight which perfectly complements the other "LINE" products. UGR 19 range
BL02092002
Data sheet
- Yes
- Yes
- IP
- IP40
- IRC
- >90
- Dimmable
- Yes
- IK
- IK06
- Energy efficiency class
- F
- Warranty (years)
- 3
- Total power (W)
- 9
- Electric class
- III, II with power supply
- Power factor
- >0.9
- Rated voltage
- 230V
- Light beam spread (°)
- 36
- Luminous flux (lm)
- 480
- Color temperature
- 3000K
- Safety group (EN62778)
- RG1
- Unified Glare Rating (UGR)
- < 19
- Driver included
- Yes
- Including the light source
- Yes
- Light source type
- SMD
- Tiltable
- Non
- Length (mm)
- 105
- Width (mm)
- 45
- Height (mm)
- 51
- Weight (kg)
- 0.24
- Min. recessed diameter (mm)
- 37
- Max. recessed diameter (mm)
- 97
- Recessed diameter
- 96, 69, 51, 62, 97, 77, 52, 63, 43, 78, 53, 64, 44, 79, 54, 65, 45, 80, 66, 46, 81, 67, 37, 82, 86, 60, 38, 83, 87, 70, 39, 84, 88, 71, 40, 85, 89, 72, 41, 55, 90, 73, 42, 56, 91, 74, 47, 57, 92, 75, 48, 58, 93, 76, 49, 59, 94, 95, 68, 50, 61
- Product color
- Black
- Use temperature range
- -20°... +45°C
- Connection type
- Connector on the product
- IP (value)
- 40
- Body materials
- Aluminium
- Diffuser materials
- PC
- Life span duration
- L70 à 25° : 50 000 h
- Recessed depth under BA13 (mm)
- 60
- Recoverable
- Non recouvrable
- Dimmable values
- Triac
- Network frequency
- 50Hz
- Initial SDCM
- SDCM< 4
9W architectural downlight. Contemporary atmosphere for this low luminance downlight which perfectly complements the other "LINE" products. UGR 19 range
