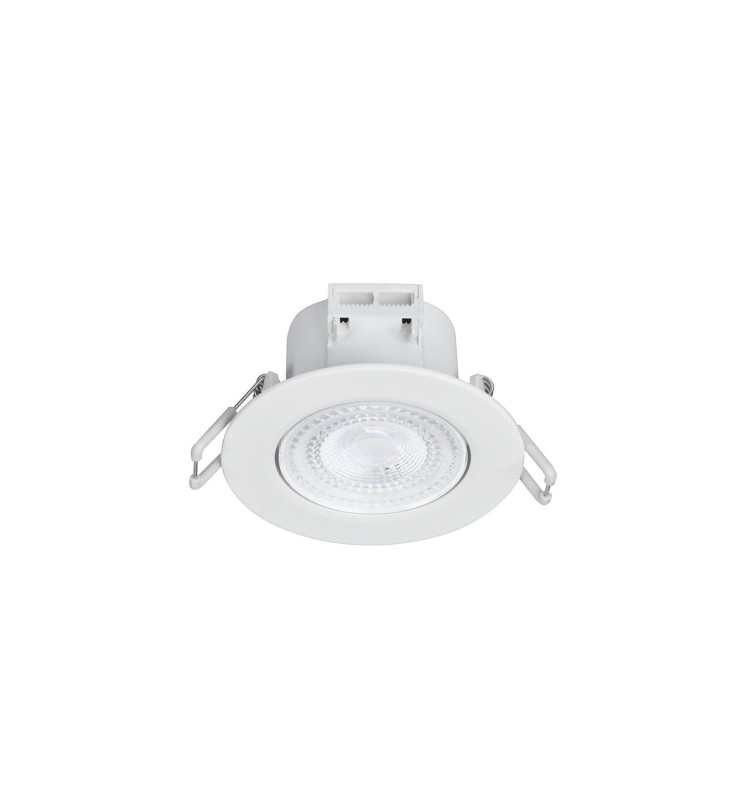

SPOT ECO-5W-IP20-3000K-NON DIM

TR01052003
Economical led downlight in adjustable polycarbonate. urge<22
TR01052003
BE-LED

Data sheet

Yes
IP
IP20, IP44 facade
IRC
>80
Dimmable
Non
IK
IK06
Energy efficiency class
E
Warranty (years)
2
Total power (W)
5
Electric class
II
Power factor
>0.9
Rated voltage
230V
Light beam spread (°)
38
Luminous flux (lm)
400
Color temperature
3000K
Safety group (EN62778)
RG0
Driver included
Yes
Including the light source
Yes
Light source type
COB
Tiltable
Yes
Height (mm)
47
Weight (kg)
0.06
Min. recessed diameter (mm)
68
Max. recessed diameter (mm)
74
Recessed diameter
71, 72, 73, 74, 68, 69, 70
Product color
White
Use temperature range
-20... +45°
Connection type
Bornier avec repiquage
IP (value)
20, 44
Body materials
PC
Diffuser materials
PC
Life span duration
L70 à 25° : 25 000 h
Recessed depth under BA13 (mm)
36
Recoverable
Non recouvrable
Tilt angle
30
Network frequency
50Hz
Initial SDCM
SDCM< 6
