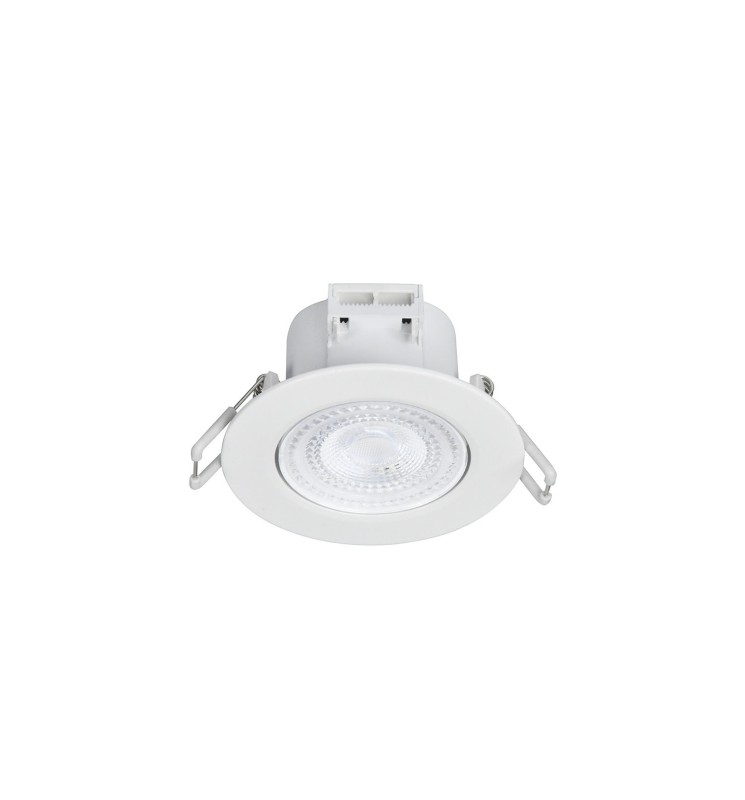

SPOT ECO -5W-IP44-4000K-NON DIM
TR01052004
Economical led downlight in adjustable polycarbonate. urge<22
TR01052004
Data sheet
- Yes
- IP
- IP20, IP44 facade
- IRC
- >80
- Dimmable
- Non
- IK
- IK06
- Energy efficiency class
- E
- Warranty (years)
- 2
- Total power (W)
- 5
- Electric class
- II
- Power factor
- >0.9
- Rated voltage
- 230V
- Light beam spread (°)
- 38
- Luminous flux (lm)
- 470
- Color temperature
- 4000K
- Safety group (EN62778)
- RG0
- Driver included
- Yes
- Including the light source
- Yes
- Light source type
- COB
- Tiltable
- Yes
- Height (mm)
- 47
- Weight (kg)
- 0.06
- Min. recessed diameter (mm)
- 68
- Max. recessed diameter (mm)
- 74
- Recessed diameter
- 70, 71, 72, 73, 74, 68, 69
- Product color
- White
- Use temperature range
- -20°... +45°C
- Connection type
- Bornier avec repiquage
- IP (value)
- 20, 44
- Body materials
- PC
- Diffuser materials
- PC
- Life span duration
- L70 à 25° : 25 000 h
- Recessed depth under BA13 (mm)
- 36
- Recoverable
- Non recouvrable
- Tilt angle
- 30
- Network frequency
- 50Hz
- Initial SDCM
- SDCM< 6
- Max. lamp per B10A circuit breaker
- 25
- Max. lamp per B16A circuit breaker
- 30
- Max. lamp per C16A circuit breaker
- 40
