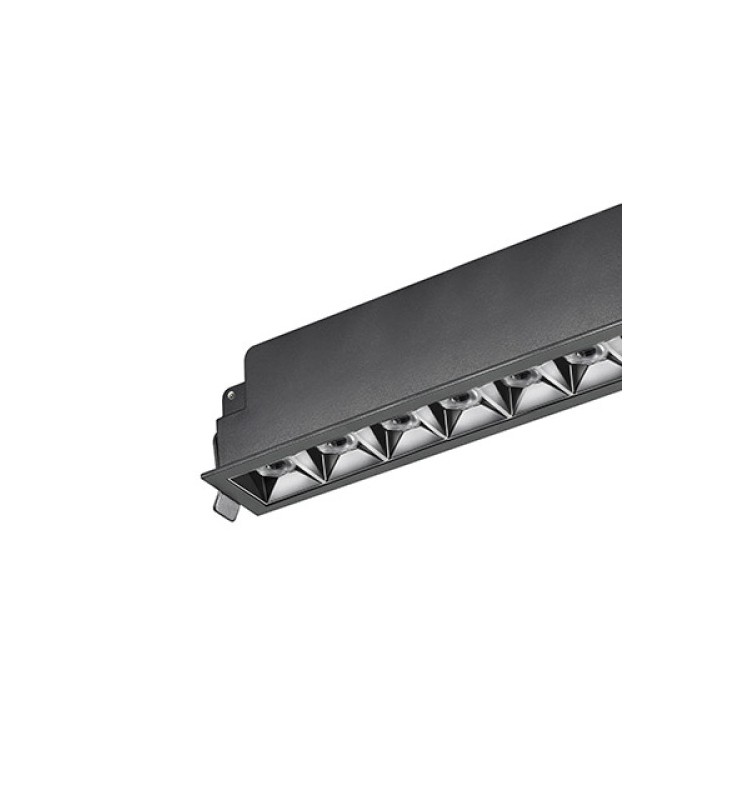

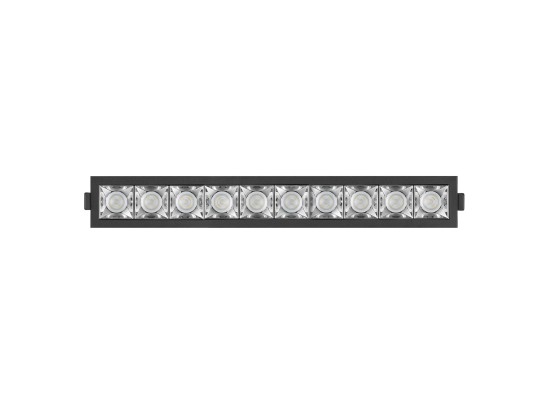

LINE 25W-3000K-36-DIM-BLACK
BL02252002
Recessed architectural led, gives depth to volumes. Low glare UGR<19, black with chrome reflector.
Appreciated by decorators for its design, it does not dazzle and brings a real contemporary touch.
Appreciated by decorators for its design, it does not dazzle and brings a real contemporary touch.
BL02252002
Data sheet
- Yes
- IP
- IP40
- IRC
- >90
- Dimmable
- Yes
- IK
- IK06
- Energy efficiency class
- F
- Warranty (years)
- 3
- Total power (W)
- 25
- Electric class
- III, II with power supply
- Power factor
- >0.9
- Rated voltage
- 230V
- Light beam spread (°)
- 36
- Luminous flux (lm)
- 1400
- Color temperature
- 3000K
- Safety group (EN62778)
- RG1
- Unified Glare Rating (UGR)
- < 19
- Driver included
- Yes
- Tiltable
- Non
- Length (mm)
- 45
- Width (mm)
- 280
- Height (mm)
- 51
- Weight (kg)
- 0.54
- Min. recessed diameter (mm)
- 37
- Max. recessed diameter (mm)
- 272
- Recessed diameter
- 84, 162, 120, 210, 246, 130, 88, 178, 232, 70, 262, 146, 104, 194, 49, 50, 85, 163, 121, 211, 247, 131, 89, 179, 233, 71, 263, 147, 105, 195, 196, 51, 55, 164, 122, 212, 248, 132, 90, 180, 234, 72, 264, 148, 106, 197, 52, 56, 165, 123, 213, 249, 133, 91, 181, 235, 73, 265, 149, 107, 198, 53, 57, 166, 124, 214, 250, 134, 92, 182, 43, 74, 266, 150, 108, 199, 54, 58, 167, 125, 215, 251, 135, 93, 183, 44, 75, 267, 151, 109, 200, 236, 59, 168, 126, 216, 252, 136, 94, 184, 45, 76, 268, 152, 110, 111, 201, 237, 61, 169, 127, 217, 253, 137, 95, 185, 46, 68, 269, 153, 154, 112, 202, 238, 62, 170, 128, 218, 254, 138, 96, 186, 37, 69, 270, 155, 113, 203, 239, 63, 171, 129, 219, 255, 139, 97, 187, 38, 77, 271, 156, 114, 204, 240, 64, 172, 226, 220, 256, 140, 98, 188, 39, 78, 272, 157, 115, 205, 241, 65, 173, 227, 221, 257, 141, 99, 189, 40, 79, 80, 158, 116, 206, 242, 66, 174, 228, 222, 258, 142, 100, 190, 41, 81, 159, 117, 207, 243, 67, 175, 229, 223, 259, 143, 101, 191, 42, 82, 160, 118, 208, 244, 86, 176, 230, 224, 260, 144, 102, 192, 47, 83, 161, 119, 209, 245, 60, 87, 177, 231, 225, 261, 145, 103, 193, 48
- Product color
- Black
- Use temperature range
- -20°... +45°C
- Connection type
- Connector on the product
- IP (value)
- 40
- Body materials
- Aluminium
- Life span duration
- L70 à 25° : 50 000 h
- Recessed depth under BA13 (mm)
- 60
- Recoverable
- Non recouvrable
- Dimmable values
- Triac
- Network frequency
- 50Hz
- Initial SDCM
- SDCM< 4
