STORM CCT BBC-7W-4 CCT-DIM 2 BEZELS WHITE ALU
TR01076501B

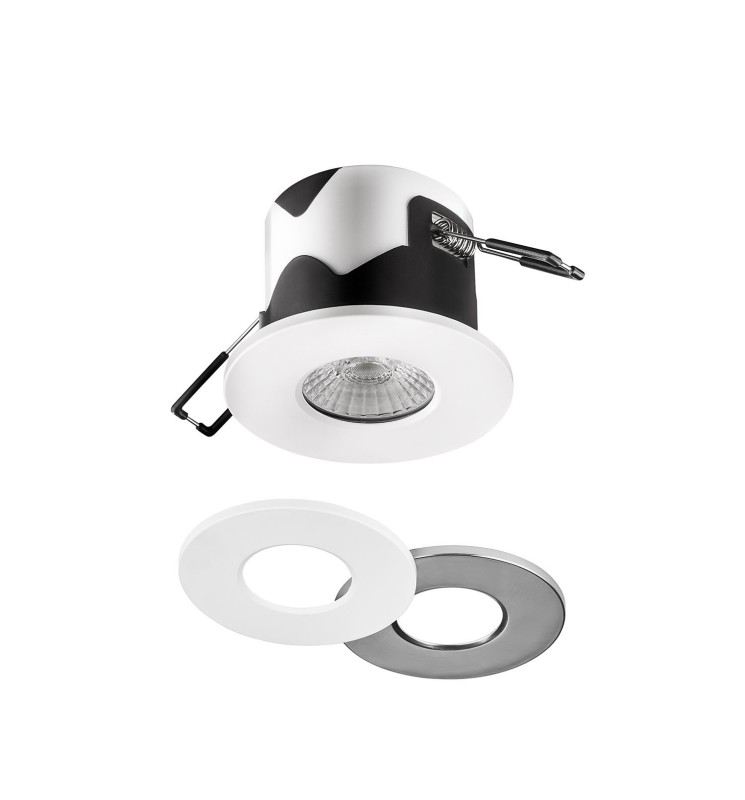

8 products in 1: Spot CCT 2700K-3000K-4000K-6000K delivered with 2 bezels, a single product for all home applications! With connection terminal block with quick tapping. Coverable insulation roll.
TR01076501B
Data sheet
- Yes
- IP
- IP65 facade
- IRC
- >80
- Dimmable
- Yes
- IK
- IK06

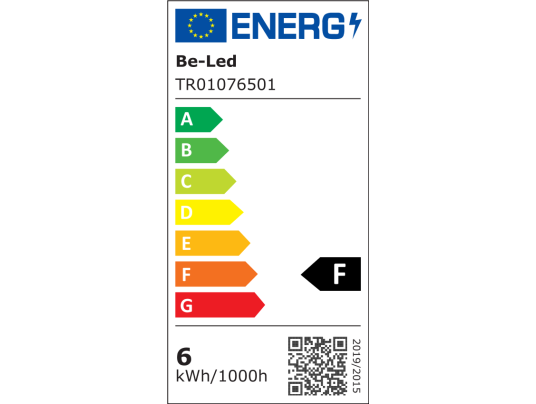

- Energy efficiency class
- F
- Warranty (years)
- 5
- Total power (W)
- 6 / 6.5
- Electric class
- I
- Power factor
- >0.95
- Rated voltage
- 230V
- Light beam spread (°)
- 60
- Luminous flux (lm)
- 580, 620, 660, 610
- Color temperature
- 4000K, 3000K, 2700K, 6000K
- Safety group (EN62778)
- RG0
- Unified Glare Rating (UGR)
- < 19
- Driver included
- Yes
- Including the light source
- Yes
- Light source type
- COB
- Tiltable
- Non
- Height (mm)
- 62
- Weight (kg)
- 0.26
- Min. recessed diameter (mm)
- 70
- Max. recessed diameter (mm)
- 76
- Recessed diameter
- 76, 70, 71, 72, 73, 74, 75
- Product color
- White
- Use temperature range
- -20°... +45°C
- Connection type
- Bornier avec repiquage
- IP (value)
- 65
- Body materials
- Aluminium
- Diffuser materials
- PC
- Life span duration
- L70 à 25° : 50 000 h
- Cable length
- 0
- Recessed depth under BA13 (mm)
- 50
- Recoverable
- Tout isolant
- Dimmable values
- Triac
- Tilt angle
- 60
- Network frequency
- 50Hz
- Initial SDCM
- SDCM< 4
