SPOT CCT-6W-IP54-DIRECT 230V-DIMM

PL01065401

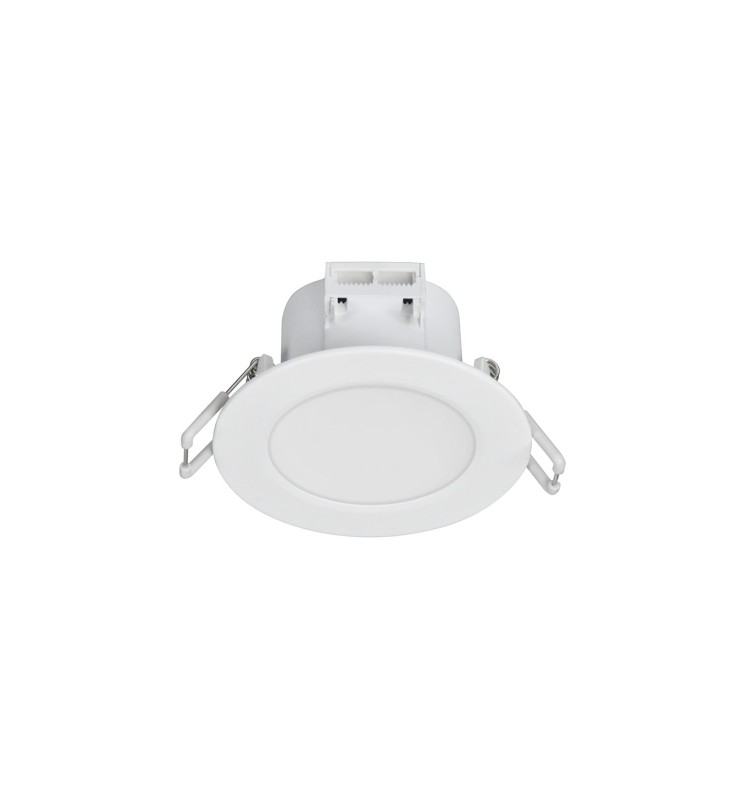

Economic spotlight in polycarbonate, 3 CCT (3000K, 4000K, 5700K) covered with roll insulation.
PL01065401
BE-LED

Data sheet

Yes
IP
IP40, IP54 facade
IRC
>80
Dimmable
Yes
IK
IK06
Energy efficiency class
E
Warranty (years)
3
Total power (W)
6
Electric class
II
Power factor
>0.9
Rated voltage
230V
Light beam spread (°)
90
Luminous flux (lm)
590, 530
Color temperature
4000K, 3000K, 5700K
Safety group (EN62778)
RG0
Driver included
Yes
Including the light source
Yes
Tiltable
Non
Height (mm)
60
Weight (kg)
0.1
Min. recessed diameter (mm)
68
Max. recessed diameter (mm)
75
Recessed diameter
71, 72, 73, 74, 75, 68, 69, 70
Product color
White
Use temperature range
-20... +40°
Connection type
Connector on the product
IP (value)
40, 54
Body materials
PC
Diffuser materials
PS
Life span duration
L70 à 25° : 35 000 h
Recessed depth under BA13 (mm)
45
Recoverable
Isolant rouleau
Dimmable values
Triac
Network frequency
50Hz
Initial SDCM
SDCM< 5
Max. lamp per B10A circuit breaker
20
Max. lamp per B16A circuit breaker
25
Max. lamp per C16A circuit breaker
30
