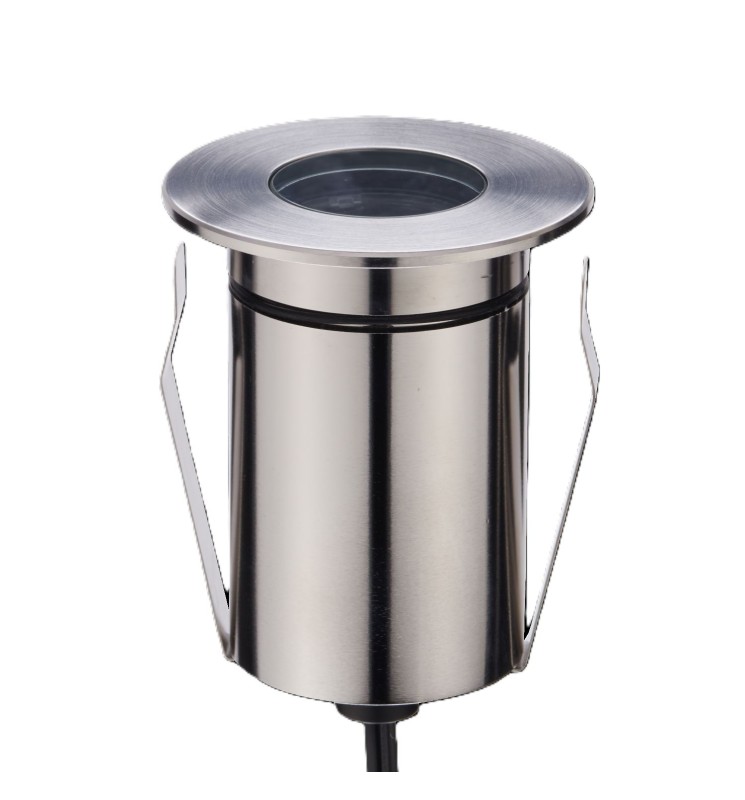

LUMI XL-ENCLOSED-24VDC-6W-3CCT-IP67

Data sheet

IP

IP67

IRC

>80

Dimmable

Yes

IK

IK10

Energy efficiency class

E

Warranty (years)

5

Total power (W)

6

Electric class

III

Power factor

NA

Rated voltage

24Vdc

Light beam spread (°)

50

Luminous flux (lm)

466

Color temperature

4000K, 3000K, 5500K

Safety group (EN62778)

RG0

Driver included

Non

Including the light source

Yes

Light source type

SMD

Tiltable

Non

Height (mm)

110

Weight (kg)

0

Min. recessed diameter (mm)

62

Max. recessed diameter (mm)

82

Recessed diameter

72, 65, 73, 66, 74, 67, 75, 76, 68, 69, 77, 78, 79, 80, 81, 82, 62, 70, 63, 71, 64

Product color

Inox

Use temperature range

-20°... +40°C

Connection type

Fil à connecter

IP (value)

67

Body materials

STAINLESS STEEL 316L

Diffuser materials

Verre trempé

Life span duration

L80 à 25° : 30 000 h

Cable length

50 cm

Recoverable

Non concerné

Dimmable values

Yes, according to driver
