CIRCLE SENSOR-10-20W-2CCT-IP54-WHITE
  • CIRCLE SENSOR-10-20W-2CCT-IP54-WHITE
  • CIRCLE SENSOR-10-20W-2CCT-IP54-WHITE
  • CIRCLE SENSOR-10-20W-2CCT-IP54-WHITE

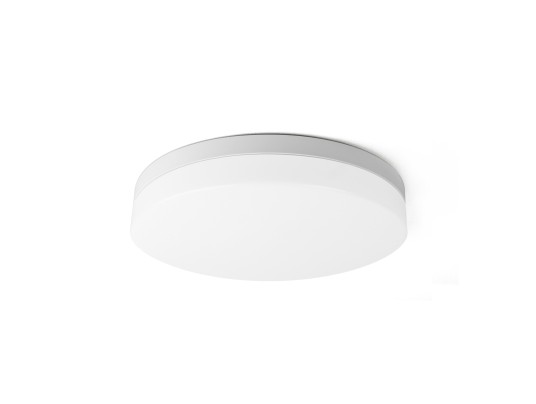

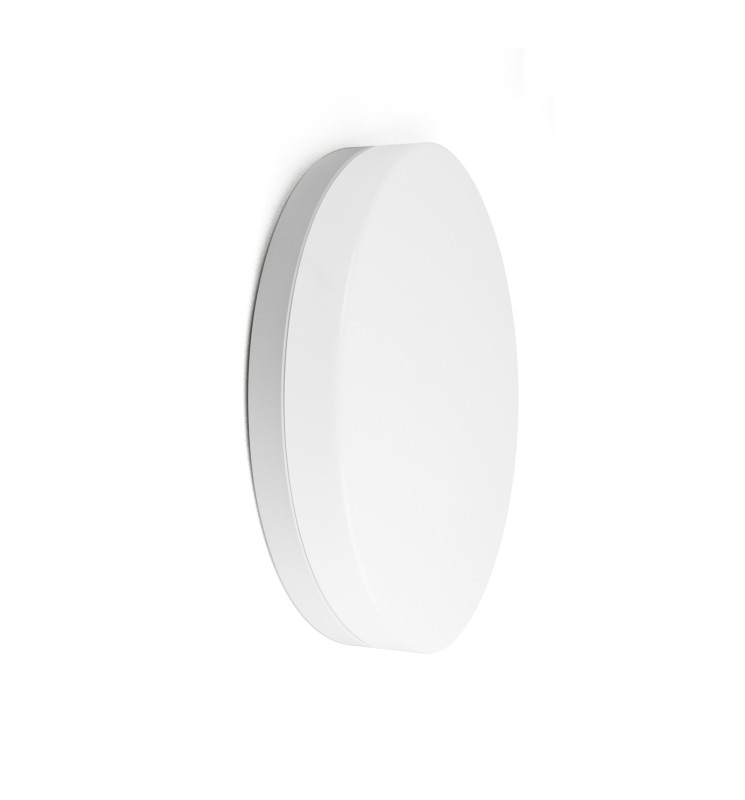

CIRCLE SENSOR-10-20W-2CCT-IP54-WHITE

BL000215
IP54 10/20W LED ceiling / portlight for residential and public buildings. Also suitable for technical rooms, washrooms, storerooms, etc.
2CCT, With HF detector, advance warning of extinction
BL000215
BE-LED

Data sheet

IP
IP54
IRC
>80
Dimmable
Non
IK
IK07
Energy efficiency class
B
Warranty (years)
3
Total power (W)
10 / 20
Electric class
II
Power factor
>0.9
Rated voltage
230V
Light beam spread (°)
135
Luminous flux (lm)
1900, 2000
Color temperature
4000K, 3000K
Safety group (EN62778)
RG0
Driver included
Yes
Including the light source
Yes
Light source type
SMD
Tiltable
Non
Height (mm)
64
Weight (kg)
0
Product color
White
Use temperature range
-20°... +40°C
Connection type
Connecteur rapide avec repiquage
IP (value)
54
Body materials
PC
Diffuser materials
PMMA, PS
Life span duration
L70 à 25° : 50 000 h
Detector
Haute fréquence
Recoverable
Non concerné
Network frequency
50Hz
Initial SDCM
SDCM< 6
