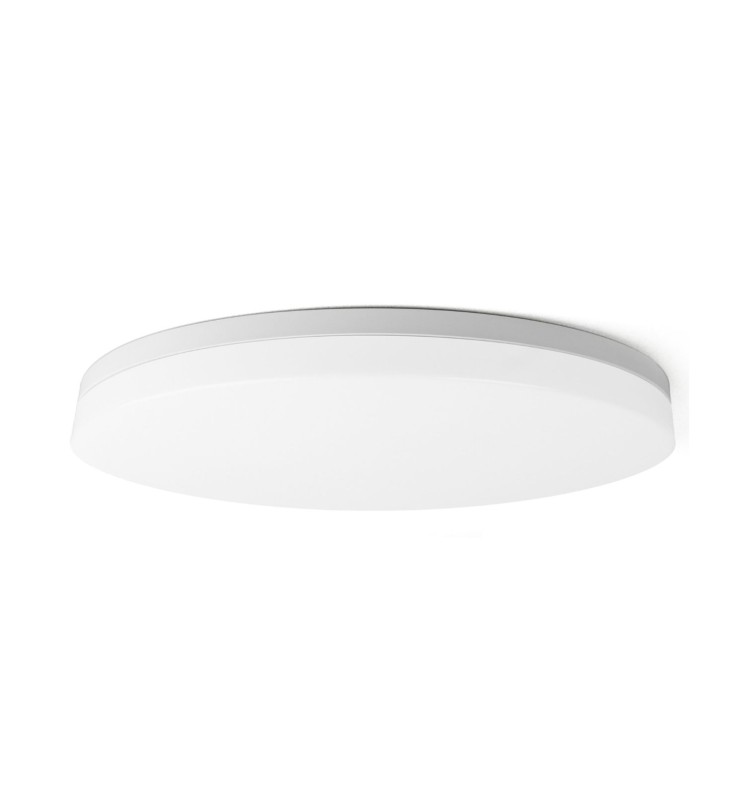

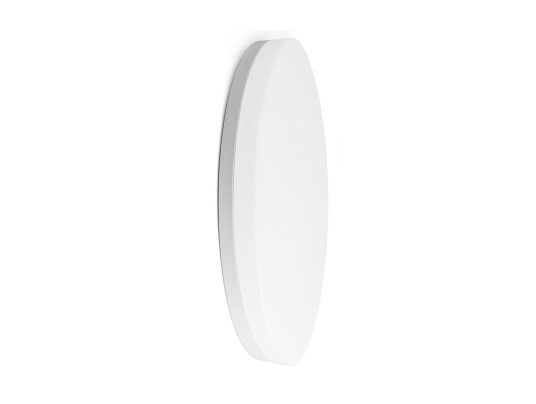

CIRCLE G2-20W-40W-DIAM460-2CCT-IP54-WHITE

Data sheet

IP

IP54

IRC

>80

Dimmable

Non

IK

IK07

Energy efficiency class

C

Warranty (years)

5

Total power (W)

20 / 40

Electric class

II

Power factor

>0.9

Rated voltage

230V

Light beam spread (°)

135

Luminous flux (lm)

4500, 4300

Color temperature

4000K, 3000K

Safety group (EN62778)

RG0

Driver included

Yes

Including the light source

Yes

Light source type

SMD

Tiltable

Non

Height (mm)

58

Weight (kg)

0

Product color

White

Use temperature range

-20°... +40°C

Connection type

Box with fast connector (L-N-PE)

IP (value)

54

Body materials

PC

Diffuser materials

PS, PMMA

Life span duration

L70B20 : 50 000 h

Recoverable

Non concerné

Network frequency

50Hz

Initial SDCM

SDCM< 6

Max. lamp per B10A circuit breaker

16

Max. lamp per B16A circuit breaker

28

Max. lamp per C16A circuit breaker

45
