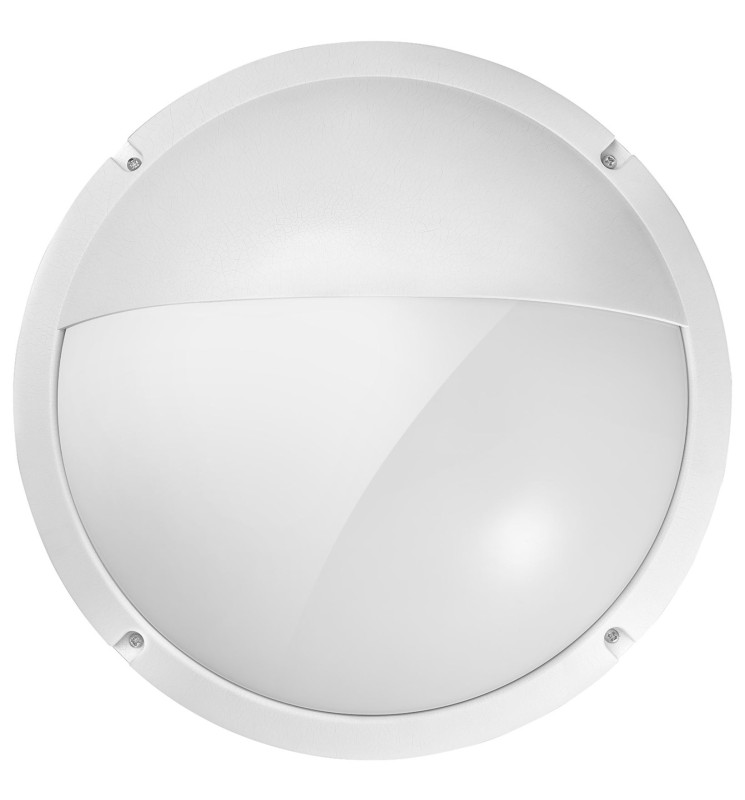

TF100-FOG ASYM SENSOR-25W-IP66-WHITE-3000K-850

BL12256504
Asymmetrical porthole with HF detector ideal for stairways, passageways and building surroundings.
BL12256504
BE-LED

Data sheet

Yes
IP
IP66
IRC
>80
Dimmable
Non
IK
IK10
Energy efficiency class
E
Warranty (years)
5
Total power (W)
24
Electric class
II
Power factor
>0.9
Rated voltage
230V
Light beam spread (°)
110
Luminous flux (lm)
2400
Color temperature
3000K
Safety group (EN62778)
RG0
Unified Glare Rating (UGR)
< 25
Driver included
Yes
Including the light source
Yes
Light source type
SMD
Tiltable
Non
Height (mm)
115
Weight (kg)
1.22
Product color
White
Use temperature range
-20... +45°
Connection type
Fast connect
IP (value)
66
Body materials
PC
Diffuser materials
PC
Life span duration
L80 à 25° : 50 000 h
Detector
Haute fréquence
Network frequency
50Hz, 60Hz
Initial SDCM
SDCM< 4
