TF037-FOG SENSOR-20W-IP66-WHITE-4000K-850

BL12206503

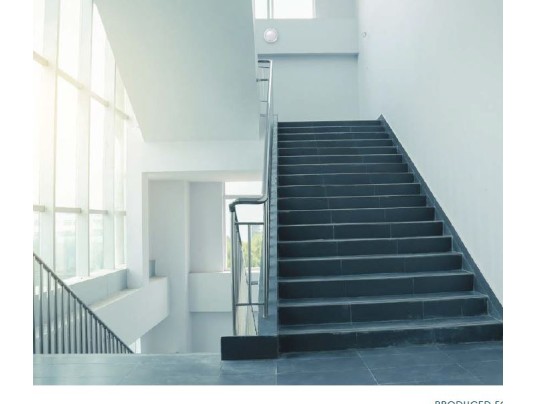

Indoor or outdoor use, IP66, with HF detector. Ideal for communities, garages and stairwells
BL12206503
BE-LED

Data sheet

IP
IP66
IRC
>80
Dimmable
Non
IK
IK10
Energy efficiency class
F
Warranty (years)
5
Total power (W)
20
Electric class
II
Power factor
>0.9
Rated voltage
230V
Light beam spread (°)
110
Luminous flux (lm)
2460
Color temperature
4000K
Safety group (EN62778)
RG0
Driver included
Yes
Including the light source
Yes
Light source type
SMD
Tiltable
Non
Height (mm)
93.5
Weight (kg)
0.96
Product color
White
Use temperature range
-20... +50°
Connection type
Connecteur rapide avec repiquage
IP (value)
66
Body materials
PC
Diffuser materials
PC
Life span duration
L80 à 25° : 50 000 h

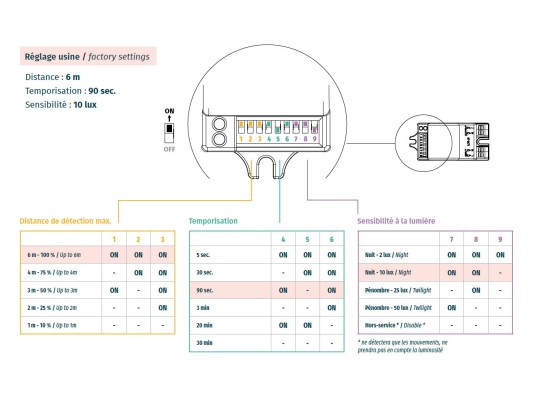

Detector
Haute fréquence
Recoverable
Non concerné
Network frequency
50Hz, 60Hz
Initial SDCM
SDCM< 5
UKCA certified
Yes
