TF040-CEILING CIRCLE-24W-IP44-WHITE-4000K
BL12246502

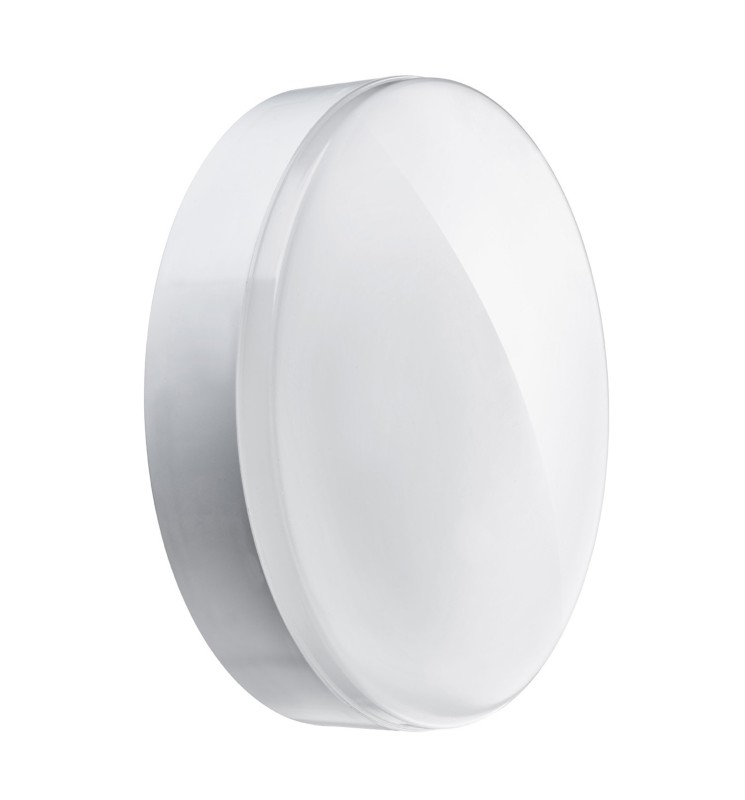

Ceiling light / Porthole led IP44 24W for residential and community housing. Also suitable for technical rooms, sanitary facilities, storeroom, etc.
BL12246502
Data sheet
- Yes
- IP
- IP44
- IRC
- >80
- Dimmable
- Non
- IK
- IK08
- Energy efficiency class
- G
- Warranty (years)
- 3
- Total power (W)
- 24
- Electric class
- II
- Power factor
- >0.9
- Rated voltage
- 230V
- Light beam spread (°)
- 115
- Luminous flux (lm)
- 2200
- Color temperature
- 4000K
- Safety group (EN62778)
- RG0
- Driver included
- Yes
- Including the light source
- Yes
- Light source type
- SMD
- Tiltable
- Non
- Height (mm)
- 72
- Weight (kg)
- 0.92
- Product color
- White
- Use temperature range
- -20°... +45°C
- Connection type
- Connecteur rapide avec repiquage
- IP (value)
- 44
- Body materials
- PC
- Diffuser materials
- PC
- Life span duration
- L70 à 25° : 35 000 h
- Network frequency
- 50Hz
- Initial SDCM
- SDCM< 5
- Max. lamp per B10A circuit breaker
- 25
- Max. lamp per B16A circuit breaker
- 30
- Max. lamp per C16A circuit breaker
- 40
Ceiling light / Porthole led IP44 24W for residential and community housing. Also suitable for technical rooms, sanitary facilities, storeroom, etc.
