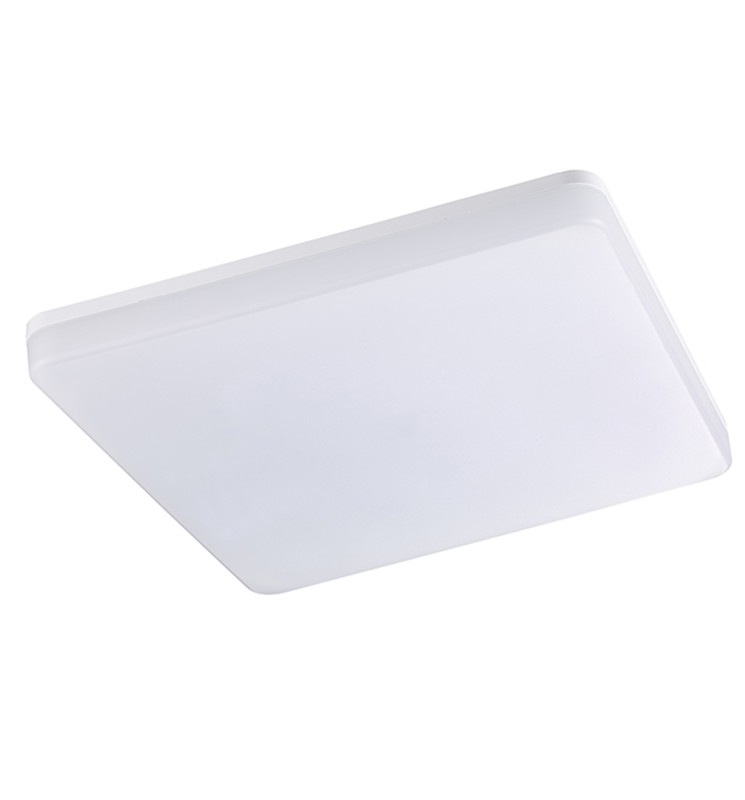

SQUARE HUBL 15W-IP44-3CCT-WHITE
TR12154406
To be wall-mounted or ceiling-mounted, the ROUND and SQUARE ranges are in 3 CCTs and offer the possibility of changing the color temperature from warm to cold shades with a simple switch.
TR12154406
Data sheet
- Yes
- IP
- IP44
- IRC
- >80
- Dimmable
- Non
- IK
- IK08
- Energy efficiency class
- F
- Warranty (years)
- 3
- Total power (W)
- 15
- Electric class
- II
- Power factor
- >0.9
- Rated voltage
- 230V
- Light beam spread (°)
- 120
- Luminous flux (lm)
- 1200
- Color temperature
- 4000K, 3000K, 5000K
- Safety group (EN62778)
- RG0
- Driver included
- Yes
- Including the light source
- Yes
- Light source type
- SMD
- Tiltable
- Non
- Length (mm)
- 220
- Width (mm)
- 220
- Height (mm)
- 53
- Weight (kg)
- 0.76
- Product color
- White
- Use temperature range
- -25°... +45°C
- Connection type
- Bornier avec repiquage
- IP (value)
- 44
- Body materials
- PC
- Diffuser materials
- PC
- Life span duration
- L80 à 25° : 35 000 h
- Recoverable
- Non concerné
- Network frequency
- 50Hz
- Initial SDCM
- SDCM< 4
