BILLY HUBL CCT-18W-IP54-3000K-4000K-5000K
TR12185401B

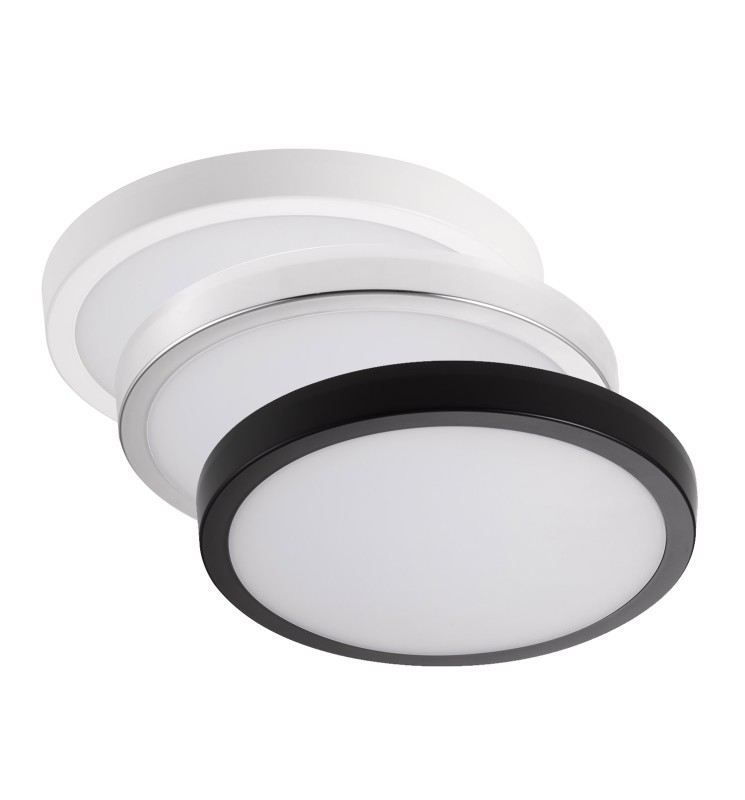

LED porthole with color temperature change on the product and three finishes: white, matte black and chrome bezels included. 9 products in 1!
TR12185401B
Data sheet
- Yes
- IP
- IP54
- IRC
- >82
- Dimmable
- Non
- IK
- IK08
- Energy efficiency class
- F
- Warranty (years)
- 3
- Total power (W)
- 18
- Electric class
- II
- Power factor
- >0.9
- Rated voltage
- 230V
- Light beam spread (°)
- 120
- Luminous flux (lm)
- 1700
- Color temperature
- 4000K, 3000K, 5000K
- Safety group (EN62778)
- RG0
- Driver included
- Yes
- Including the light source
- Yes
- Light source type
- SMD
- Tiltable
- Non
- Height (mm)
- 42
- Weight (kg)
- 0.79
- Product color
- White
- Use temperature range
- -20°... +40°C
- Connection type
- Bornier avec repiquage
- IP (value)
- 54
- Body materials
- PC
- Diffuser materials
- PS
- Life span duration
- L70 à 25° : 35 000 h
- Recoverable
- Non concerné
- Network frequency
- 50Hz
- Initial SDCM
- SDCM< 4
- Max. lamp per B10A circuit breaker
- 15
- Max. lamp per B16A circuit breaker
- 20
- Max. lamp per C16A circuit breaker
- 30
