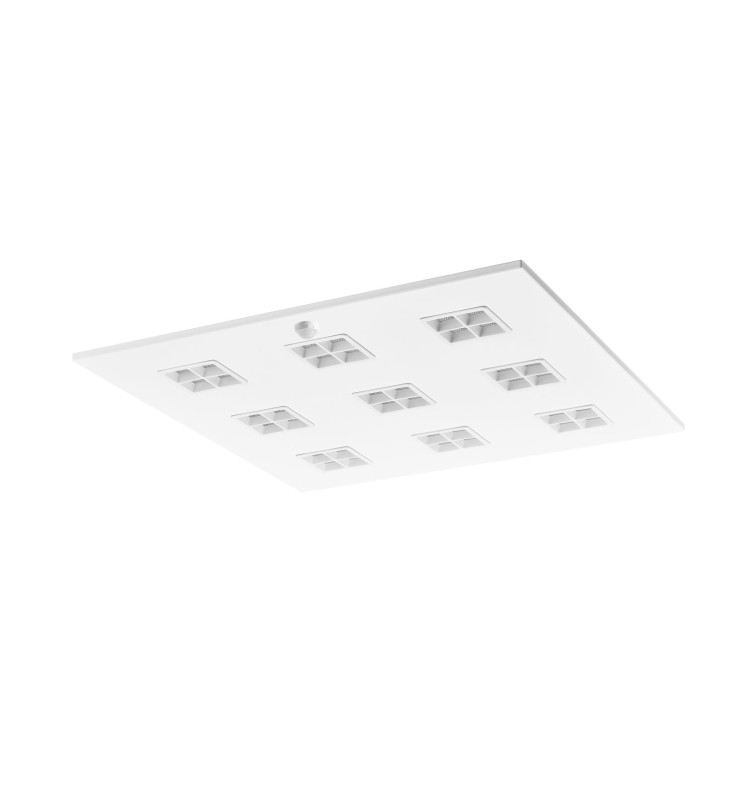

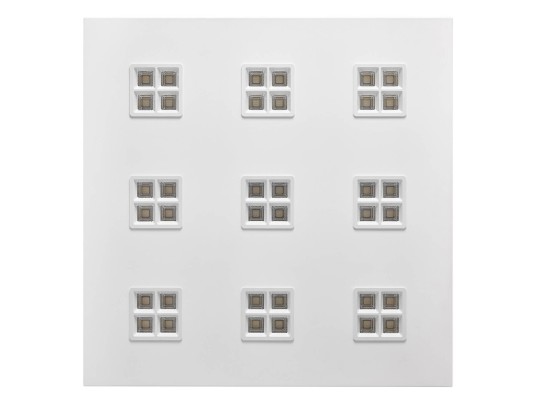

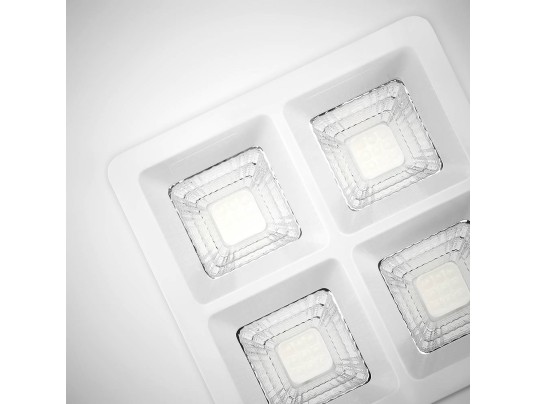

DALLE COMFORT12-DALI-SENSOR-HARVEST-M/S-600x600-22W-IP20-UGR12-4000K-WHITE
BL000260

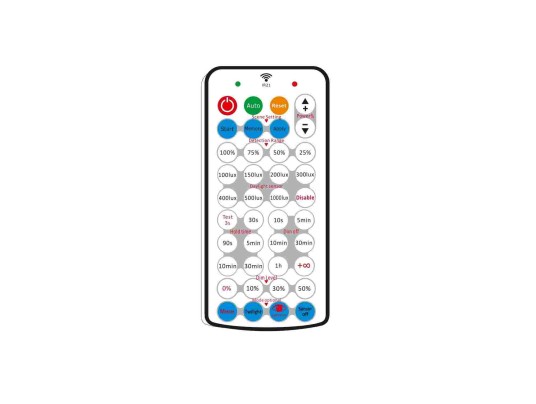

UGR12 intelligent LED panel with DALI Harvest sensor, adjustable by remote control (OPTIONAL).
Controls all DALI tiles in a room, ideal for classrooms, offices and tertiary spaces. Available in 3000K and black on request
Controls all DALI tiles in a room, ideal for classrooms, offices and tertiary spaces. Available in 3000K and black on request
BL000260
Data sheet
- IP
- IP20
- IRC
- >80
- Dimmable
- Yes
- IK
- IK06
- Energy efficiency class
- D
- Warranty (years)
- 5
- Total power (W)
- 22
- Electric class
- III, II with power supply
- Power factor
- >0.95
- Rated voltage
- 230V
- Light beam spread (°)
- 70
- Luminous flux (lm)
- 3100
- Color temperature
- 4000K
- Safety group (EN62778)
- RG1
- Unified Glare Rating (UGR)
- < 12
- Driver included
- Yes
- Including the light source
- Yes
- Light source type
- SMD
- Tiltable
- Non
- Length (mm)
- 595
- Width (mm)
- 595
- Height (mm)
- 34
- Weight (kg)
- 3.8
- Product color
- White
- Use temperature range
- -20°... +45°C
- Connection type
- Box with fast connector (L-PE-N)
- IP (value)
- 20
- Body materials
- Aluminium
- Diffuser materials
- PC
- Life span duration
- L80B10 : 50 000 h
- Detector
- Infra rouge
- Recoverable
- Non recouvrable
- Dimmable values
- Dali, Daylight sensor, with infrared remote control
- Network frequency
- 50Hz
- Initial SDCM
- SDCM< 4
- Max. lamp per B10A circuit breaker
- 10
- Max. lamp per B16A circuit breaker
- 15
- Max. lamp per C16A circuit breaker
- 20
