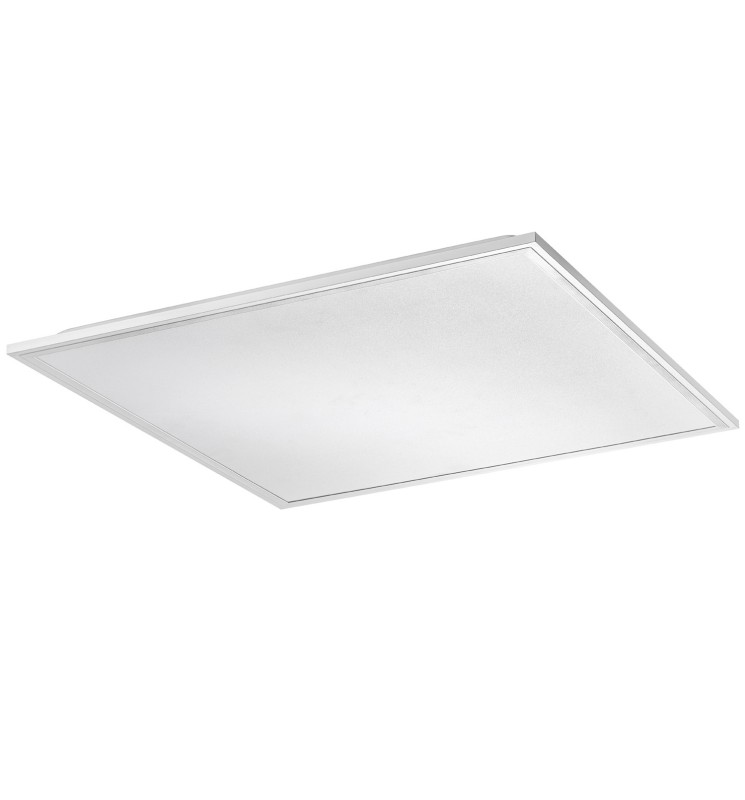

BACKLIT ECO-40W-4000K-2 PIECES

PL04402001
Economical LED panel with connection terminal and safety cable. One package = 1 reference which contains 2 products
PL04402001
BE-LED

Data sheet

Yes
Yes
IP
IP20
IRC
>85
Dimmable
Non
IK
IK02
Energy efficiency class
D
Warranty (years)
3
Total power (W)
36
Electric class
II with power supply, III
Power factor
>0.9
Rated voltage
230V
Light beam spread (°)
120
Luminous flux (lm)
3400
Color temperature
4000K
Safety group (EN62778)
RG0
Unified Glare Rating (UGR)
< 19*
Driver included
Yes
Including the light source
Yes
Light source type
SMD
Tiltable
Non
Length (mm)
595
Width (mm)
595
Height (mm)
26
Weight (kg)
3.32
Product color
White
Use temperature range
-20°... +45°C
Connection type
Connecteur rapide avec repiquage
IP (value)
20
Body materials
Aluminium
Life span duration
L70 à 25° : 50 000 h
Recoverable
Insulation material except driver
Network frequency
50Hz, 60Hz
Initial SDCM
SDCM< 4
