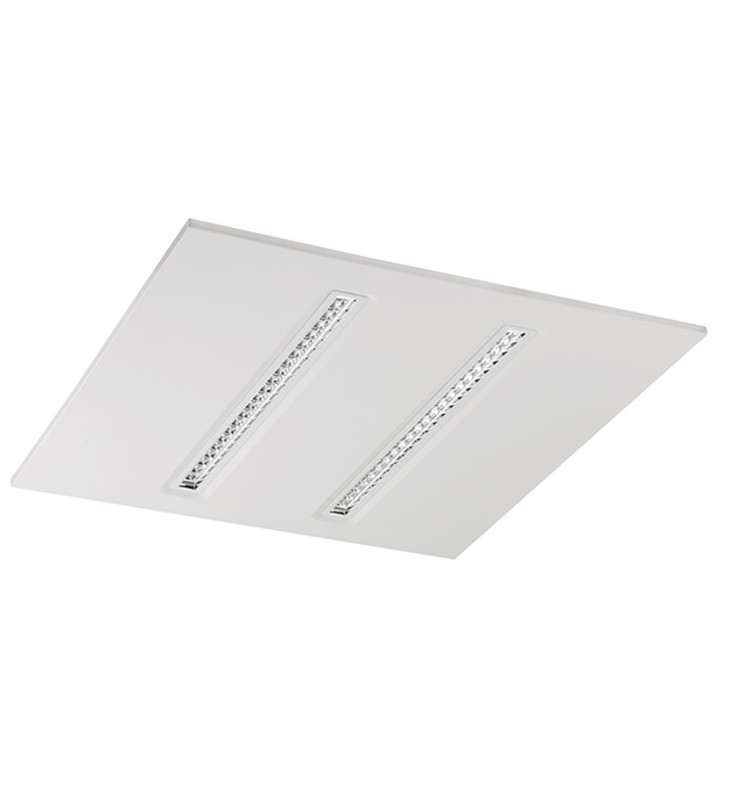

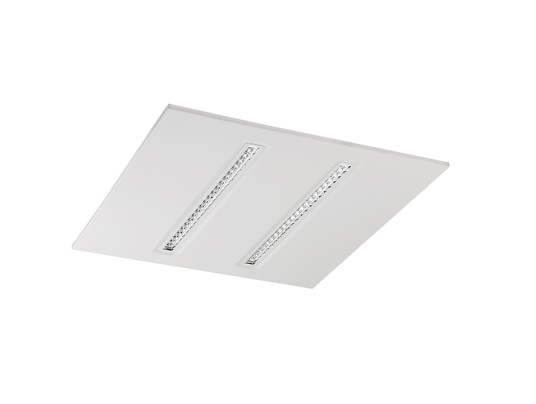

PAVE LED COMFORT UGR16-600x600-32W-IP20-4000K-WHITE-DALI

Data sheet

Yes

IP

IP20

IRC

>80

Dimmable

Yes

IK

IK06

Energy efficiency class

E

Warranty (years)

5

Total power (W)

32

Electric class

III, II with power supply

Power factor

>0.95

Rated voltage

230V

Light beam spread (°)

85

Luminous flux (lm)

4550

Color temperature

4000K

Safety group (EN62778)

RG0

Unified Glare Rating (UGR)

< 16

Driver included

Yes

Including the light source

Yes

Light source type

SMD

Tiltable

Non

Length (mm)

595

Width (mm)

595

Height (mm)

26

Weight (kg)

2.82

Product color

White

Use temperature range

-20°... +45°C

Connection type

Bornier avec repiquage

IP (value)

20

Body materials

Aluminium, PC

Diffuser materials

PC

Life span duration

L80B10 à 25° : 50 000 h

Cable length

0

Recessed depth under BA13 (mm)

40

Recoverable

Insulation material except driver

Dimmable values

push dim, Dali

Network frequency

50Hz

Initial SDCM

SDCM< 3

Max. lamp per B10A circuit breaker

10

Max. lamp per B16A circuit breaker

15

Max. lamp per C16A circuit breaker

20
