COMFORT UGR 16-300x1200-35W-IP20-4000K-WHITE-DALI
BL04242081

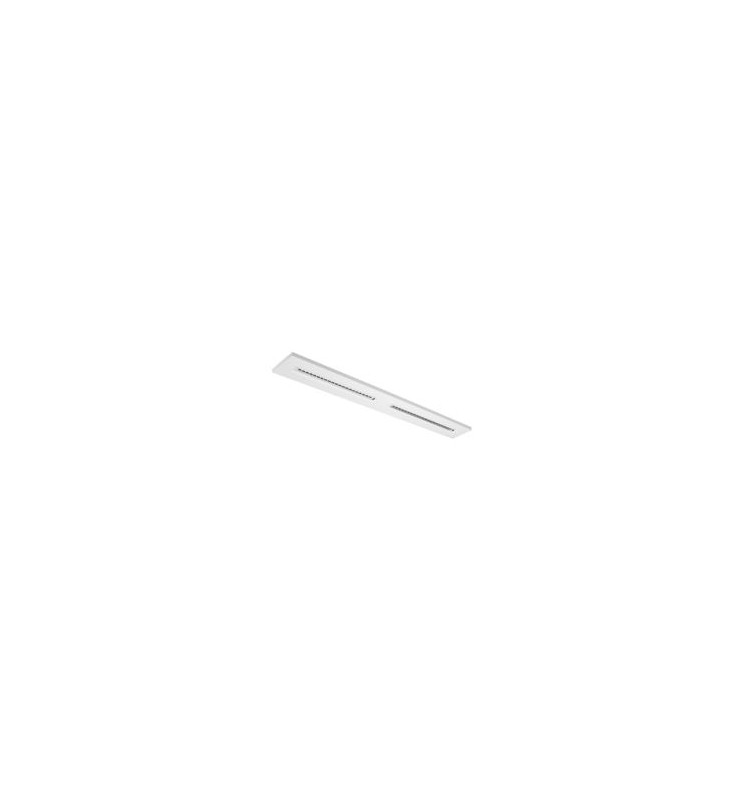

UGR<16 300x1200 panel with chrome reflector. Interchangeable led module. Driver Dali push dimm.
BL04242081
Data sheet
- Yes
- IP
- IP20
- IRC
- >80
- Dimmable
- Yes
- IK
- IK07
- Energy efficiency class
- E
- Warranty (years)
- 5
- Total power (W)
- 35
- Electric class
- III, II with power supply
- Power factor
- >0.95
- Rated voltage
- 230V
- Light beam spread (°)
- 85
- Luminous flux (lm)
- 4800
- Color temperature
- 4000K
- Safety group (EN62778)
- RG0
- Unified Glare Rating (UGR)
- < 16
- Driver included
- Yes
- Including the light source
- Yes
- Light source type
- SMD
- Tiltable
- Non
- Length (mm)
- 1195
- Width (mm)
- 295
- Height (mm)
- 10
- Weight (kg)
- 3.4
- Product color
- White
- Use temperature range
- -20°... +45°C
- Connection type
- Bornier avec repiquage
- IP (value)
- 20
- Body materials
- Aluminium
- Life span duration
- L90B10 à 25° : 50 000 h
- Dimmable values
- Dali, push dim
- Network frequency
- 50Hz, 60Hz
- Initial SDCM
- SDCM< 3
UGR<16 300x1200 panel with chrome reflector. Interchangeable led module. Driver Dali push dimm.
