- Rupture de stock

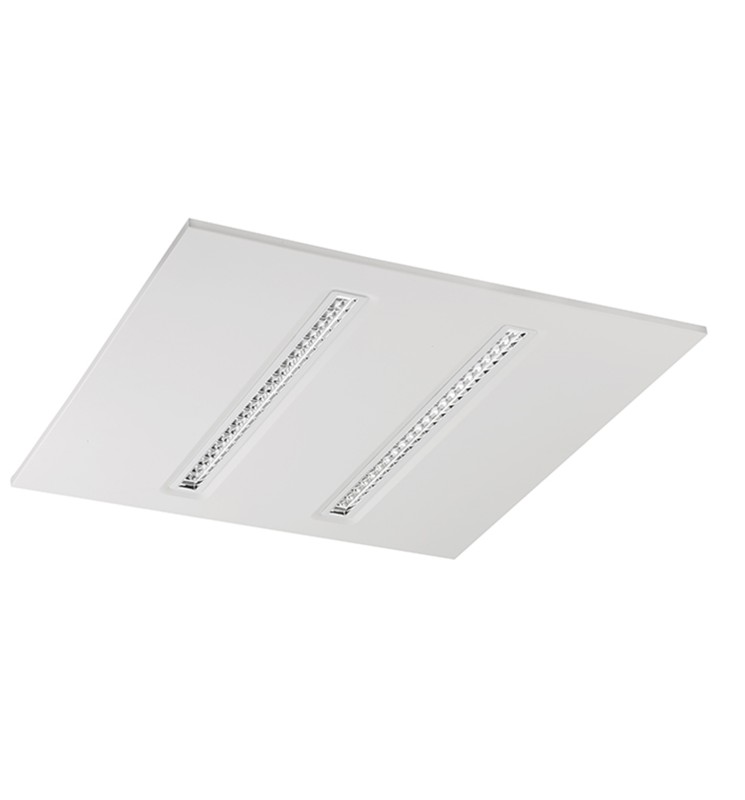

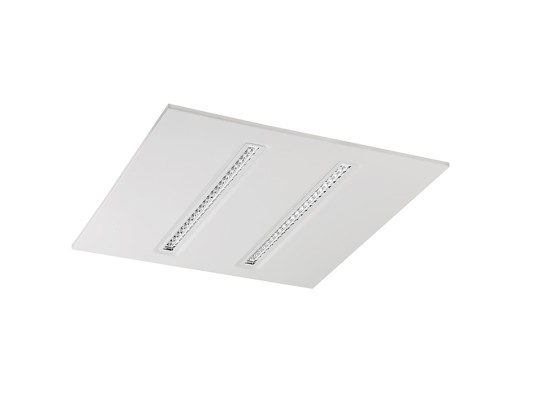

PAVE LED COMFORT UGR16-600x600-24W-IP20-4000K-WHITE
BL04242069
600X600 UGR<16 panel, chrome optics. Low consumption and very good visual comfort! EEC eligible.
Ideal for rooms with demanding or intense visual work. 140lm/W, interchangeable LED modules to optimize recycling. Dalí option.
Ideal for rooms with demanding or intense visual work. 140lm/W, interchangeable LED modules to optimize recycling. Dalí option.
BL04242069
Data sheet
- Yes
- IP
- IP20
- IRC
- >80
- Dimmable
- Non
- IK
- IK06
- Energy efficiency class
- D
- Warranty (years)
- 5
- Total power (W)
- 24
- Electric class
- III, II with power supply
- Power factor
- >0.95
- Rated voltage
- 230V
- Light beam spread (°)
- 85
- Luminous flux (lm)
- 3350
- Color temperature
- 4000K
- Safety group (EN62778)
- RG0
- Unified Glare Rating (UGR)
- < 16
- Driver included
- Yes
- Including the light source
- Yes
- Light source type
- SMD
- Tiltable
- Non
- Length (mm)
- 595
- Width (mm)
- 595
- Height (mm)
- 26
- Weight (kg)
- 2.82
- Product color
- White
- Use temperature range
- -20°... +45°C
- Connection type
- Bornier avec repiquage
- IP (value)
- 20
- Body materials
- Aluminium, PC
- Diffuser materials
- PC
- Life span duration
- L80B10 à 25° : 50 000 h
- Cable length
- 0
- Recessed depth under BA13 (mm)
- 40
- Recoverable
- Insulation material except driver
- Network frequency
- 60Hz, 50Hz
- Initial SDCM
- SDCM< 3
- Max. lamp per B10A circuit breaker
- 10
- Max. lamp per B16A circuit breaker
- 15
- Max. lamp per C16A circuit breaker
- 20
- UKCA certified
- Yes
600X600 UGR<16 panel, chrome optics. Low consumption and very good visual comfort! EEC eligible.
Ideal for rooms with demanding or intense visual work. 140lm/W, interchangeable LED modules to optimize recycling. Dalí option.
Ideal for rooms with demanding or intense visual work. 140lm/W, interchangeable LED modules to optimize recycling. Dalí option.
