EDGE PRO SLAB 1200x300-22W-4000k-UGR19-PRISM
BL04452084

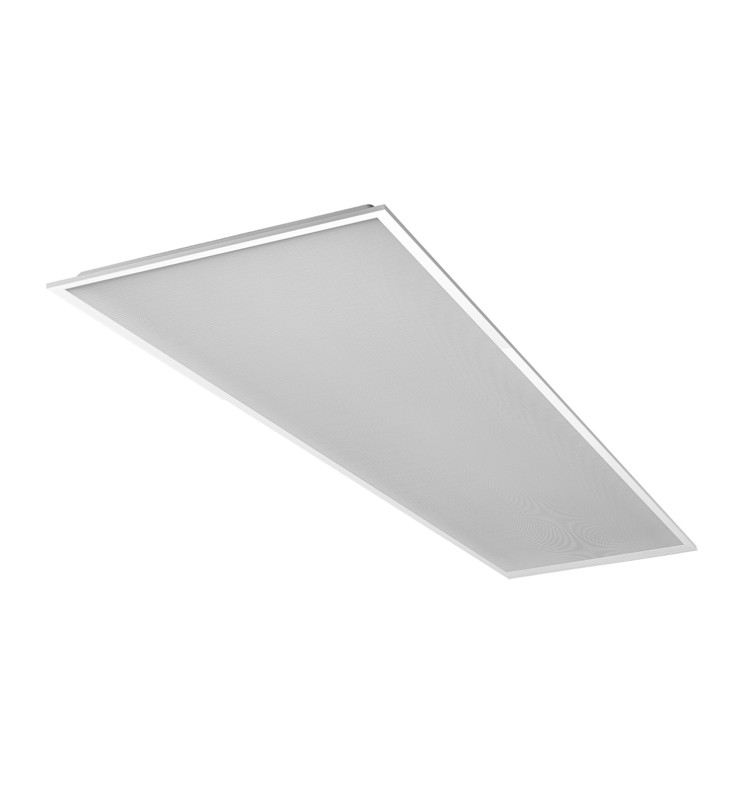

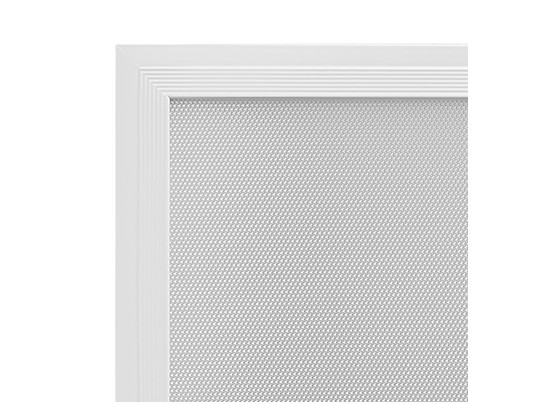

300x1200 "edge" led panel with micro prismatic diffuser. UGR<19, ideal for installations in schools and tertiary environments.
BL04452084
Data sheet
- Yes
- IP
- IP20, IP40 front
- IRC
- >85
- Dimmable
- Non
- IK
- IK06
- Energy efficiency class
- E
- Warranty (years)
- 5
- Total power (W)
- 22
- Electric class
- II with power supply, III
- Power factor
- >0.95
- Rated voltage
- 230V
- Light beam spread (°)
- 90
- Luminous flux (lm)
- 2750
- Color temperature
- 4000K
- Safety group (EN62778)
- RG0
- Unified Glare Rating (UGR)
- < 19
- Driver included
- Yes
- Including the light source
- Yes
- Light source type
- SMD
- Tiltable
- Non
- Length (mm)
- 1195
- Width (mm)
- 295
- Height (mm)
- 10
- Weight (kg)
- 2.3
- Product color
- White
- Use temperature range
- -20°... +45°C
- Connection type
- Connecteur rapide avec repiquage
- IP (value)
- 40, 20
- Life span duration
- L80B20 à 25° : 50 000 h
- Recoverable
- Insulation material except driver
- Network frequency
- 50Hz, 60Hz
- Initial SDCM
- SDCM< 4
300x1200 "edge" led panel with micro prismatic diffuser. UGR<19, ideal for installations in schools and tertiary environments.
