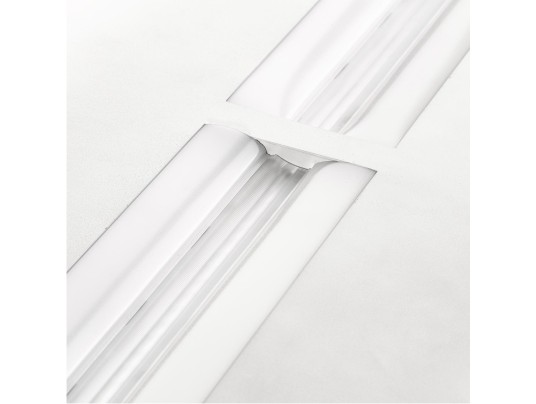

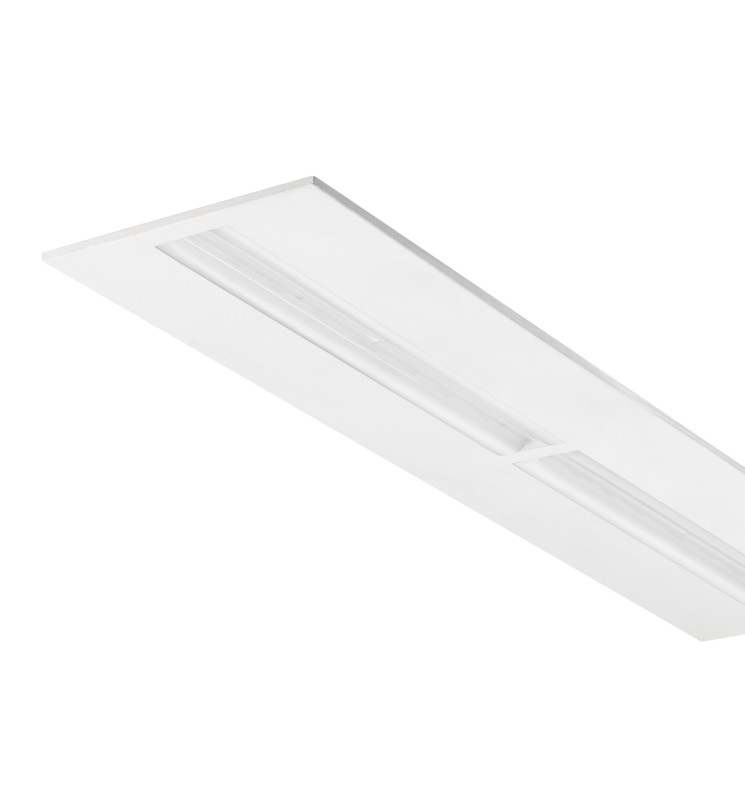

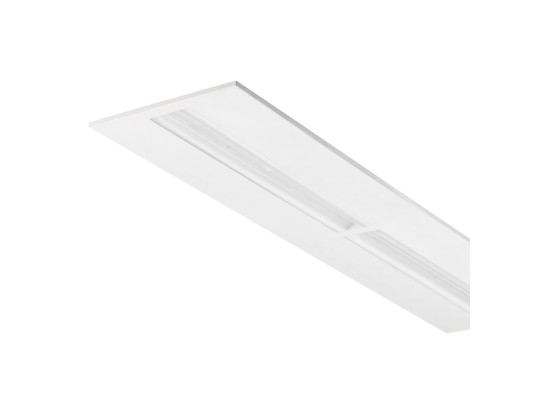

ASYMMETRICAL BOARD-30W-1200x300-4000K-DALI-SURFACE FRAME
BL04362101
Recessed with asymmetrical flow (panels). Ideal for classes, training centers. Projecting frame (ceiling or suspended with the kit).
BL04362101
Data sheet
- IP
- IP20
- IRC
- >80
- Dimmable
- Yes
- IK
- IK08
- Energy efficiency class
- D
- Warranty (years)
- 5
- Total power (W)
- 25 / 27 / 29 / 30 / 32 / 34 / 36 / 38
- Electric class
- III, II with power supply
- Power factor
- >0.95
- Rated voltage
- 230V
- Light beam spread (°)
- 60
- Luminous flux (lm)
- 3600
- Color temperature
- 4000K
- Safety group (EN62778)
- RG1
- Driver included
- Yes
- Including the light source
- Yes
- Light source type
- SMD
- Tiltable
- Non
- Length (mm)
- 1195
- Width (mm)
- 295
- Height (mm)
- 60
- Weight (kg)
- 2.86
- Product color
- White RAL9016
- Use temperature range
- -20°... +45°C
- Connection type
- Box with fast connector (L-N)
- IP (value)
- 20
- Body materials
- Iron
- Life span duration
- L80B20 à 25° : 50 000 h
- Recoverable
- Insulation material except driver
- Dimmable values
- Dali, push dim
- Network frequency
- 50Hz
- Initial SDCM
- SDCM< 4
- Max. lamp per B10A circuit breaker
- 18
- Max. lamp per B16A circuit breaker
- 29
- Max. lamp per C16A circuit breaker
- 48
