PANEL COMFORT UGR 16-600x600-24W-IP20-4000K-WHITE

BL000057
600X600 UGR<16 panel, chrome optics. Low consumption and very good visual comfort! EEC eligible.

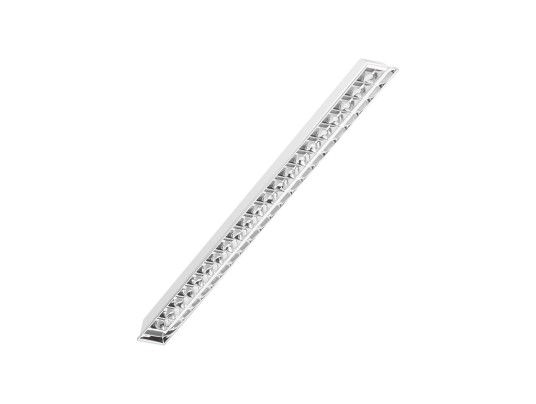

Ideal for rooms with demanding or intense visual work. 140lm/W, interchangeable LED modules to optimize recycling. Dalí option.
BL000057
BE-LED

Data sheet

Yes
Yes
IP
IP20
IRC
>80
Dimmable
Non
IK
IK06
Energy efficiency class
C
Warranty (years)
5
Total power (W)
24
Electric class
III, II with power supply
Power factor
>0.95
Rated voltage
230V
Light beam spread (°)
85
Luminous flux (lm)
3050
Color temperature
4000K
Safety group (EN62778)
RG0
Unified Glare Rating (UGR)
< 16
Driver included
Yes
Including the light source
Yes
Light source type
SMD
Tiltable
Non
Length (mm)
595
Width (mm)
595
Height (mm)
38
Weight (kg)
2.82
Product color
Black
Use temperature range
-20... +45°
Connection type
Box with fast connector (L-PE-N)
IP (value)
20
Body materials
Aluminium, PC
Diffuser materials
PC
Life span duration
L80B10 à 25° : 50 000 h
Recessed depth under BA13 (mm)
40
Recoverable
Insulation material except driver
Network frequency
50Hz
Initial SDCM
SDCM< 3
Max. lamp per B10A circuit breaker
10
Max. lamp per B16A circuit breaker
15
Max. lamp per C16A circuit breaker
20
