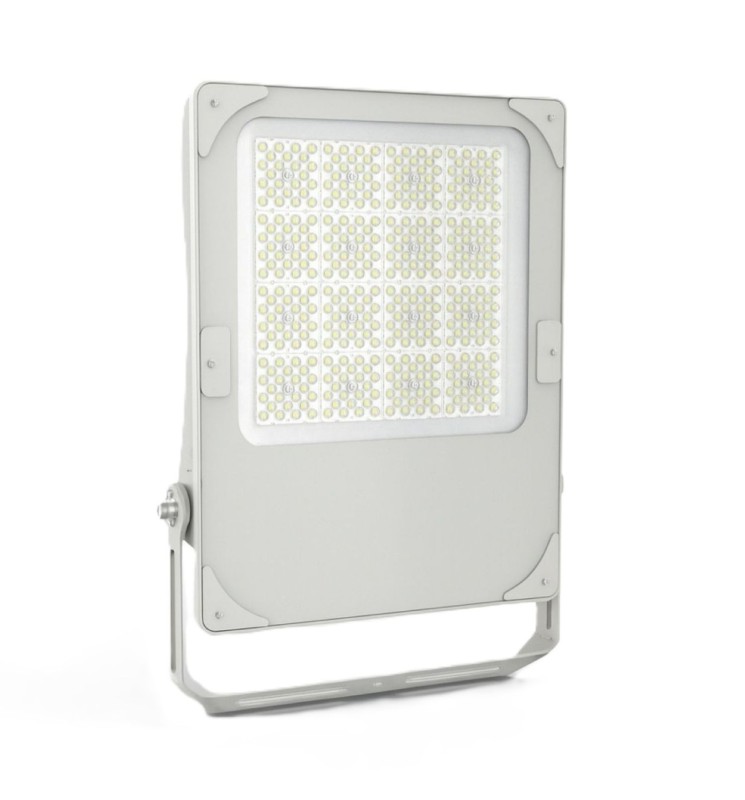

CIME 200-100150200W-IP66-3CCT-ASYM-RAL7035
BL000328
High power projector with color and power temperature change. Adapt the lighting in situ according to the customer's needs.
Master the desired effect once installed.
Master the desired effect once installed.
BL000328
Data sheet
- IP
- IP66
- IRC
- >80
- Dimmable
- Non
- IK
- IK08
- Energy efficiency class
- B
- Warranty (years)
- 5
- Total power (W)
- 100 / 150 / 200
- Electric class
- I
- Power factor
- >0.9
- Rated voltage
- 230V
- Light beam spread (°)
- 150, 0% (With an installation that complies with anti-light pollution regulations)
- Luminous flux (lm)
- 28000
- Color temperature
- 4000K, 3000K, 2700K
- Safety group (EN62778)
- RG1
- Driver included
- Yes
- Including the light source
- Yes
- Light source type
- SMD
- Tiltable
- Yes
- Length (mm)
- 58
- Width (mm)
- 335
- Height (mm)
- 448
- Weight (kg)
- 0
- Product color
- Gray RAL 7035
- Use temperature range
- -40°... +45°C
- Connection type
- Fil à connecter
- IP (value)
- 66
- Body materials
- Aluminium
- Diffuser materials
- Verre trempé
- Life span duration
- L90B20 : 50 000 h
- Cable length
- 100 cm
- Recoverable
- Non concerné
- Tilt angle
- 270
- Network frequency
- 50Hz
- Initial SDCM
- SDCM< 6
- Max. lamp per B10A circuit breaker
- 8
- Max. lamp per B16A circuit breaker
- 13
- Max. lamp per C16A circuit breaker
- 13
