ARCHI-5W-IP65-3000K

BL10066501

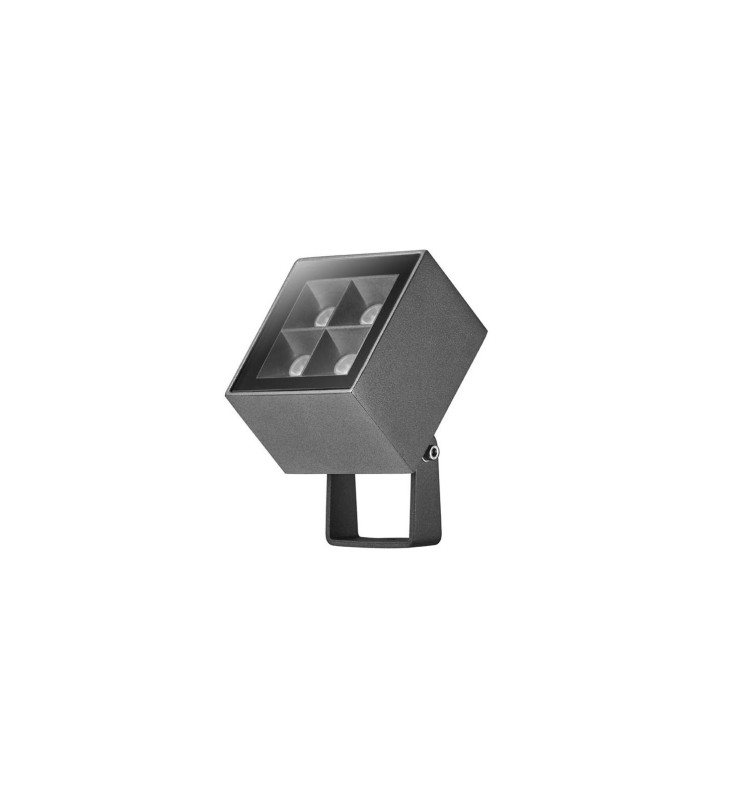

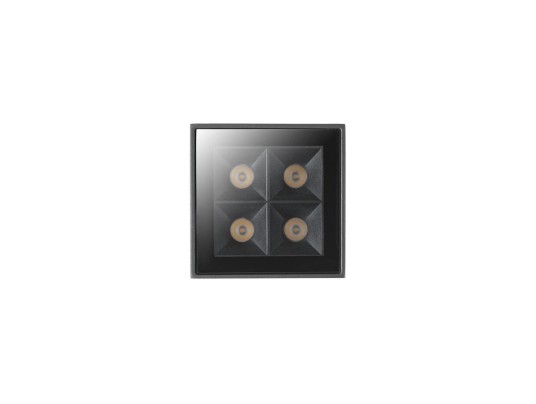

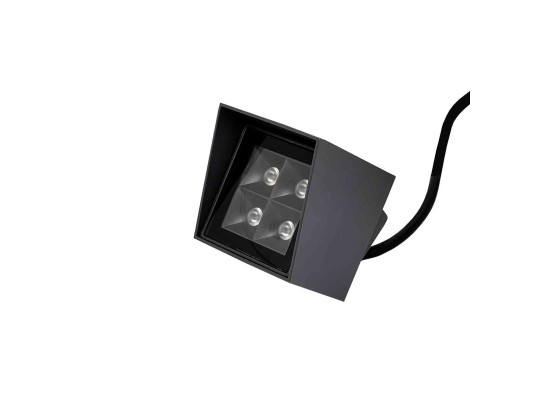

Architectural, design and compact LED projector. UGR<19. Anti-glare cap included.
It allows the enhancement of architectural elements while being discreet. Its lenses make it possible not to dazzle.
BL10066501
BE-LED

Data sheet

Yes
IP
IP65
IRC
>80
Dimmable
Non
IK
IK07
Energy efficiency class
F
Warranty (years)
5
Total power (W)
5
Electric class
I
Power factor
>0.9
Rated voltage
230V
Light beam spread (°)
30
Luminous flux (lm)
400
Color temperature
3000K
Safety group (EN62778)
RG0
Unified Glare Rating (UGR)
< 12
Driver included
Yes
Including the light source
Yes
Light source type
SMD
Tiltable
Yes
Length (mm)
75
Width (mm)
75
Height (mm)
55
Weight (kg)
0.84
Product color
Dark gray
Use temperature range
-20... +40°
Connection type
Fil à connecter
IP (value)
65
Body materials
Aluminium
Diffuser materials
Verre trempé
Life span duration
L70 à 25° : 50 000 h
Cable length
100 cm

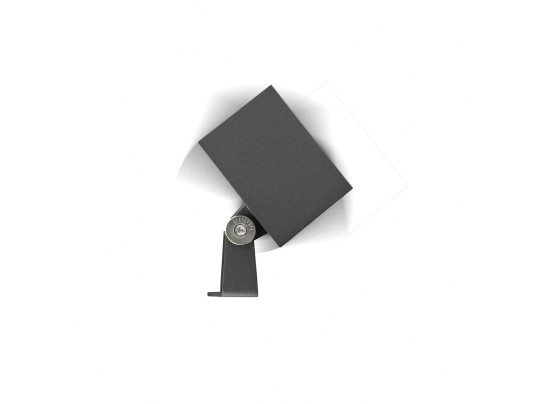

Tilt angle
120
Network frequency
50Hz
Initial SDCM
SDCM< 3
Max. lamp per B10A circuit breaker
25
Max. lamp per B16A circuit breaker
30
Max. lamp per C16A circuit breaker
40
