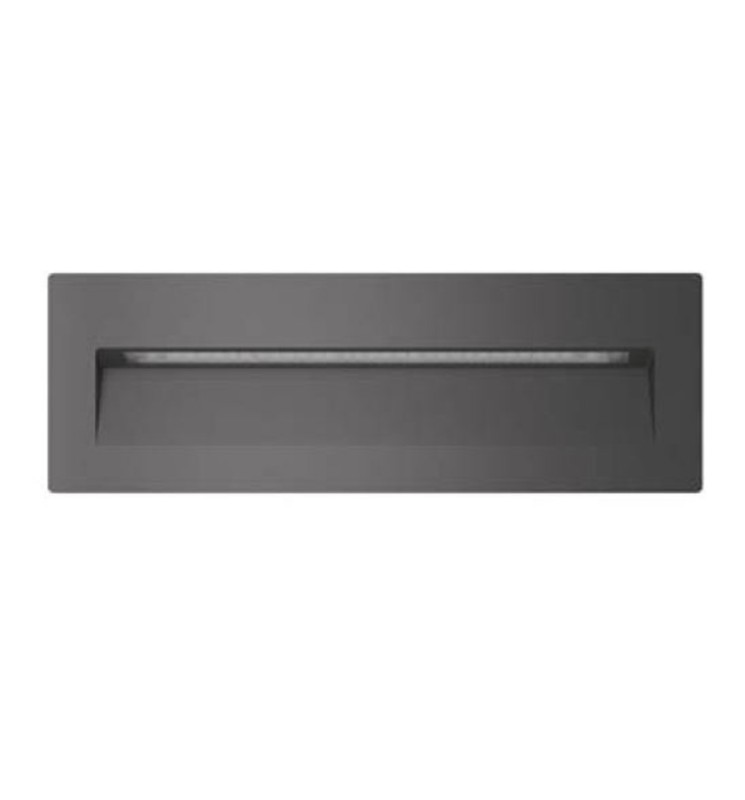

WALL RECT RECESSED-8W-IP65-3000K-DARK GREY

Data sheet

IP

IP65

IRC

>80

Dimmable

Non

IK

IK08

Energy efficiency class

E

Warranty (years)

5

Total power (W)

8

Electric class

I

Power factor

>0.9

Rated voltage

230V

Light beam spread (°)

60

Luminous flux (lm)

330

Color temperature

3000K

Safety group (EN62778)

RG0

Driver included

Yes

Including the light source

Yes

Light source type

SMD

Tiltable

Non

Length (mm)

54

Width (mm)

226

Height (mm)

76

Weight (kg)

0.66

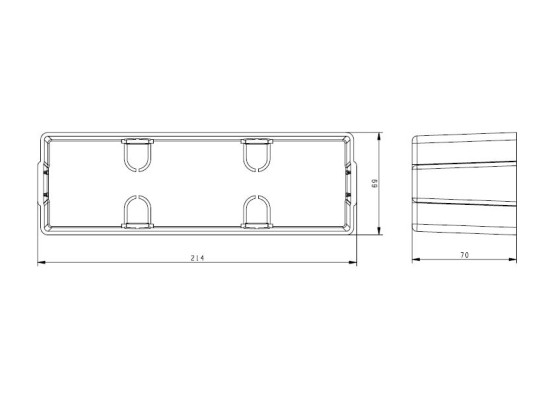

Min. recessed diameter (mm)

69

Max. recessed diameter (mm)

214

Recessed diameter

135, 117, 183, 85, 151, 199, 101, 167, 70, 136, 118, 184, 86, 152, 200, 102, 168, 71, 72, 137, 119, 185, 87, 153, 201, 103, 169, 73, 138, 120, 186, 88, 154, 202, 104, 170, 74, 139, 121, 187, 89, 155, 203, 105, 171, 75, 140, 122, 188, 90, 156, 204, 106, 172, 76, 141, 123, 189, 91, 157, 205, 107, 173, 69, 142, 124, 190, 92, 158, 206, 108, 174, 175, 77, 143, 125, 191, 93, 159, 207, 109, 176, 78, 144, 126, 192, 94, 160, 208, 110, 177, 79, 145, 127, 193, 95, 161, 209, 111, 178, 80, 146, 128, 194, 96, 162, 210, 130, 112, 179, 81, 147, 129, 195, 97, 163, 211, 131, 113, 114, 180, 82, 148, 196, 98, 164, 212, 132, 133, 115, 181, 83, 149, 197, 99, 165, 213, 134, 116, 182, 84, 150, 198, 100, 166, 214

Product color

Dark gray

Use temperature range

-25°... +45°C

Connection type

Connector on the product

IP (value)

65

Body materials

Aluminium

Diffuser materials

PC

Life span duration

L80 à 25° : 35 000 h

Network frequency

50Hz, 60Hz

Initial SDCM

SDCM< 4
