ORIENT 180-10W-IP65-3000K
BL16106501

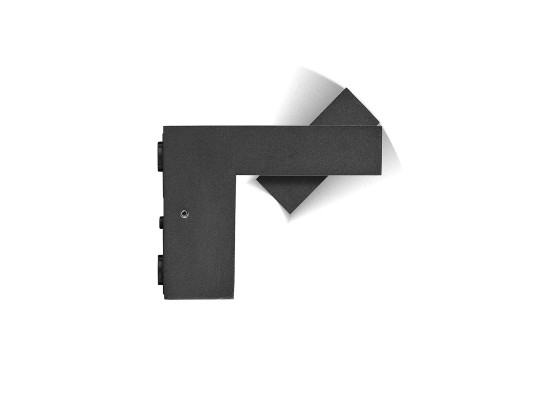

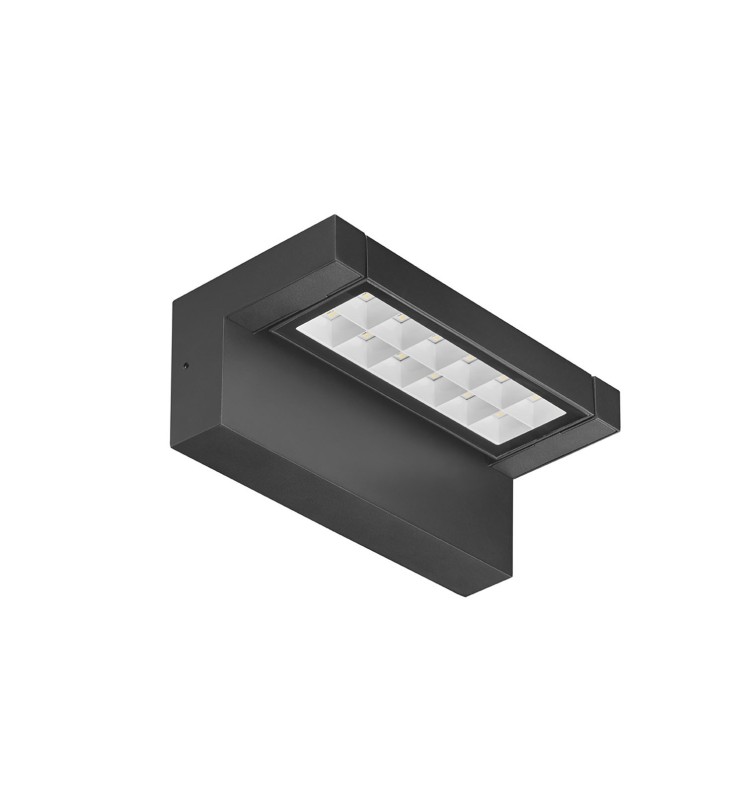

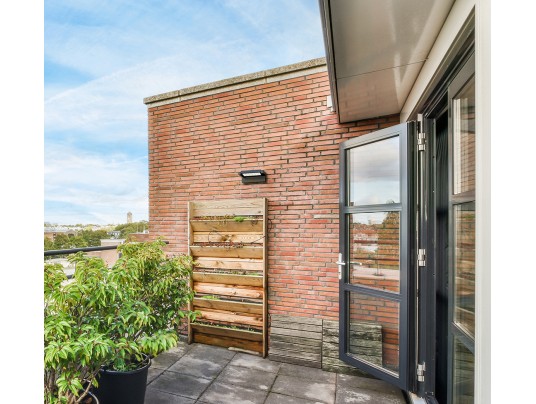

Outdoor LED wall light. Ideal for residences, 180 degree adjustable LED source
can be installed up or down
can be installed up or down
BL16106501
Data sheet
- IP
- IP65
- IRC
- >80
- Dimmable
- Non
- IK
- IK08
- Energy efficiency class
- D
- Warranty (years)
- 3
- Total power (W)
- 10
- Electric class
- I
- Power factor
- >0.9
- Rated voltage
- 230V
- Light beam spread (°)
- 90, 0% (With an installation that complies with anti-light pollution regulations)
- Luminous flux (lm)
- 1300
- Color temperature
- 3000K
- Safety group (EN62778)
- RG1
- Driver included
- Yes
- Including the light source
- Yes
- Light source type
- SMD
- Tiltable
- Yes
- Length (mm)
- 203
- Width (mm)
- 80
- Height (mm)
- 108
- Weight (kg)
- 0.88
- Product color
- Dark gray
- Use temperature range
- -20°... +45°C

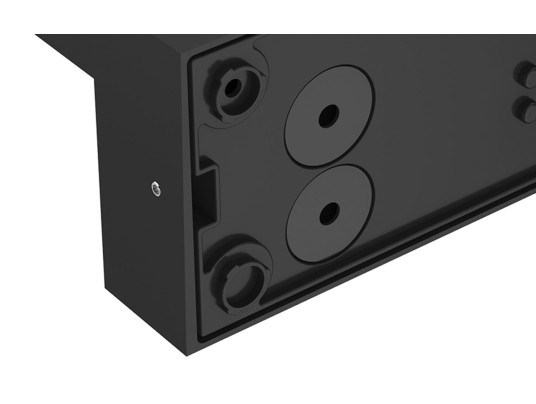

- Connection type
- Box with fast connector (L-N-PE)
- IP (value)
- 65
- Body materials
- Aluminium
- Diffuser materials
- PC
- Life span duration
- L70 à 25° : 50 000 h
- Recoverable
- Non recouvrable
- Tilt angle
- 180
- Network frequency
- 50Hz
- Initial SDCM
- SDCM< 5
