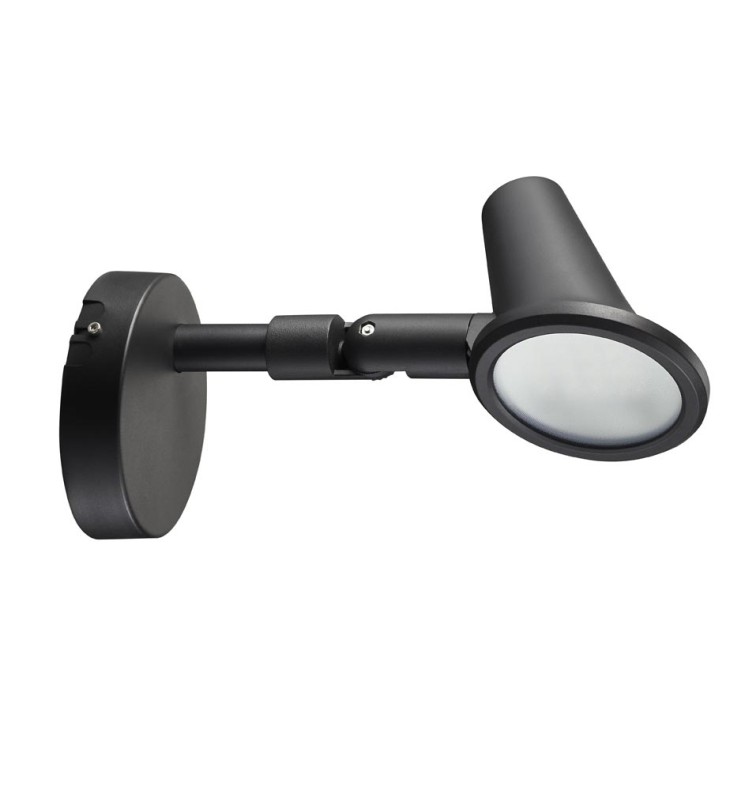

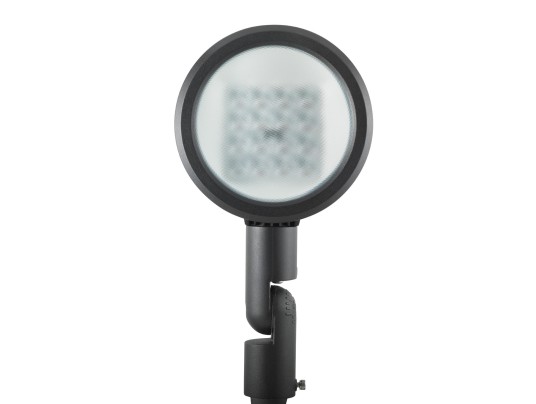

SIGN FLOODLIGHT 15CM-16W-3000K-IP65-BLACK
PL10166502
Sign projector SIGN IP65 with waterproof connector included. An asymmetrical light distribution, a color temperature of 3000K which meets the regulations on light pollution!
PL10166502
Data sheet
- Yes
- IP
- IP65
- IRC
- >80
- Dimmable
- Non
- IK
- IK08
- Energy efficiency class
- D
- Warranty (years)
- 5
- Total power (W)
- 16
- Electric class
- II
- Power factor
- >0.9
- Rated voltage
- 230V
- Light beam spread (°)
- 130, 0% (With an installation that complies with anti-light pollution regulations)
- Luminous flux (lm)
- 1920
- Color temperature
- 3000K
- Safety group (EN62778)
- RG0
- Unified Glare Rating (UGR)
- < 22
- Driver included
- Yes
- Tiltable
- Yes
- Length (mm)
- 380
- Width (mm)
- 141
- Height (mm)
- 133
- Weight (kg)
- 1.46
- Product color
- Black
- Use temperature range
- -20°... +45°C
- Connection type
- fast connector
- IP (value)
- 65
- Body materials
- Aluminium
- Diffuser materials
- Verre trempé
- Life span duration
- L80 à 25° : 50 000 h
- Tilt angle
- 90
- Network frequency
- 50Hz
- Initial SDCM
- SDCM< 4
