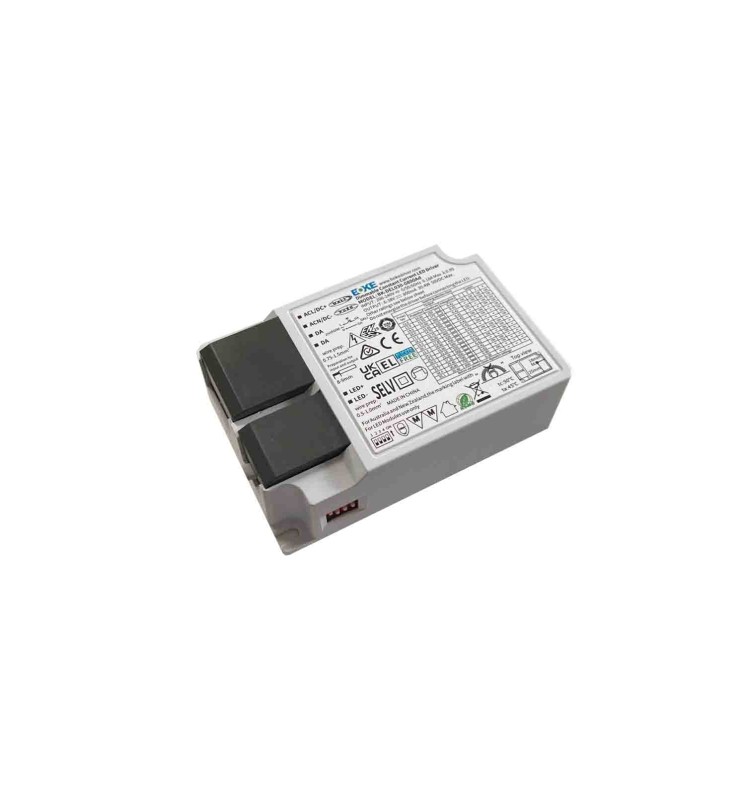

DRIVER DALI-PUSHDIM-11W TO 30W
BL09302002
Dali and Pushdim power supply, constant current, from 250mA to 800mA. For Visual 25W downlight or equivalent product.
Power supply equipped with a jack socket on the LED side and a quick terminal block with connection (L-PE-N-DA1-DA2)
Power supply equipped with a jack socket on the LED side and a quick terminal block with connection (L-PE-N-DA1-DA2)
BL09302002
Data sheet
- Yes
- Yes
- IP
- IP20
- Dimmable
- Yes
- IK
- IK04
- Warranty (years)
- 5
- Total power (W)
- 32
- Electric class
- II
- Power factor
- >0.95
- Rated voltage
- 230V
- Driver included
- Non
- Tiltable
- Non
- Length (mm)
- 103
- Width (mm)
- 68.5
- Height (mm)
- 30.5
- Weight (kg)
- 0.22
- Product color
- White
- Use temperature range
- -20°... +45°C
- Connection type
- Box DALI with fast connector (L-PE-N-DA1-DA2)
- IP (value)
- 20
- Body materials
- PC
- Life span duration
- 75 000 h
- Cable length
- 20 cm
- Recoverable
- Non recouvrable
- Dimmable values
- Dali, push dim
- Network frequency
- 50Hz
Dali and Pushdim power supply, constant current, from 250mA to 800mA. For Visual 25W downlight or equivalent product.
Power supply equipped with a jack socket on the LED side and a quick terminal block with connection (L-PE-N-DA1-DA2)
Power supply equipped with a jack socket on the LED side and a quick terminal block with connection (L-PE-N-DA1-DA2)
