- Rupture de stock

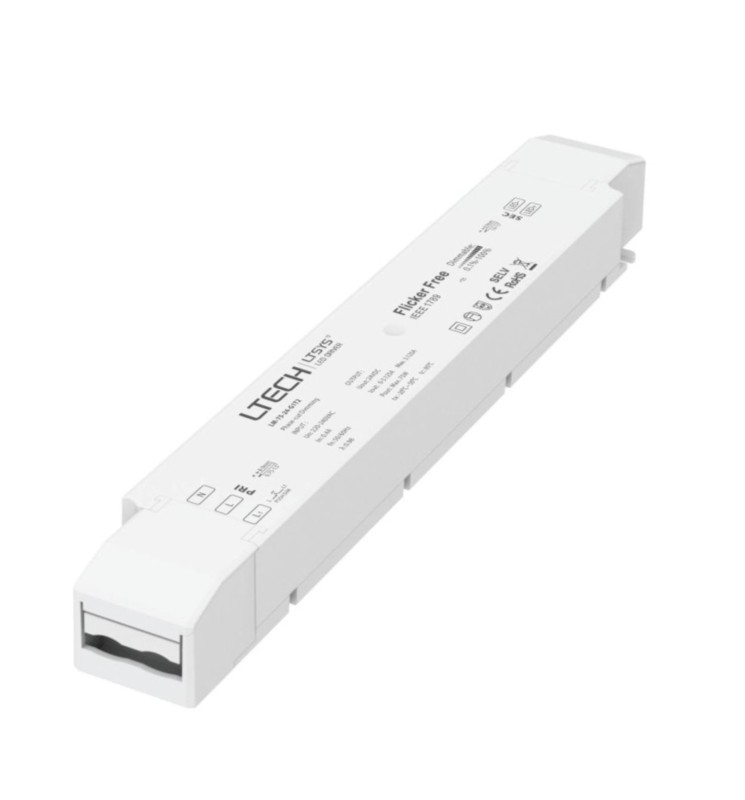

DRIVER TRIAC-24V-75W
BL000338
Power supply in 24 Vdc dimmable Triac, 1 channel maximum 60W. IP20, 5 years warranty. Allows you to control the led strips with a TRIAC controller.
BL000338
Data sheet
- Yes
- IP
- IP20
- Dimmable
- Yes
- IK
- IK04
- Warranty (years)
- 5
- Total power (W)
- 75
- Electric class
- II
- Power factor
- >0.95
- Rated voltage
- 230V
- Driver included
- Non
- Tiltable
- Non
- Length (mm)
- 293
- Width (mm)
- 43
- Height (mm)
- 30
- Weight (kg)
- 0
- Product color
- White
- Use temperature range
- -20°... +50°C
- Connection type
- Connector on the product
- IP (value)
- 20
- Body materials
- PC
- Life span duration
- 50 000 h
- Recoverable
- Non recouvrable
- Dimmable values
- Triac, push dim
- Network frequency
- 50Hz, 60Hz
Power supply in 24 Vdc dimmable Triac, 1 channel maximum 60W. IP20, 5 years warranty. Allows you to control the led strips with a TRIAC controller.
