ALIM-CC600/1050mA-25/40W-24/42V-IP20-BOKE-DALI PUSH DIM
PL09302003

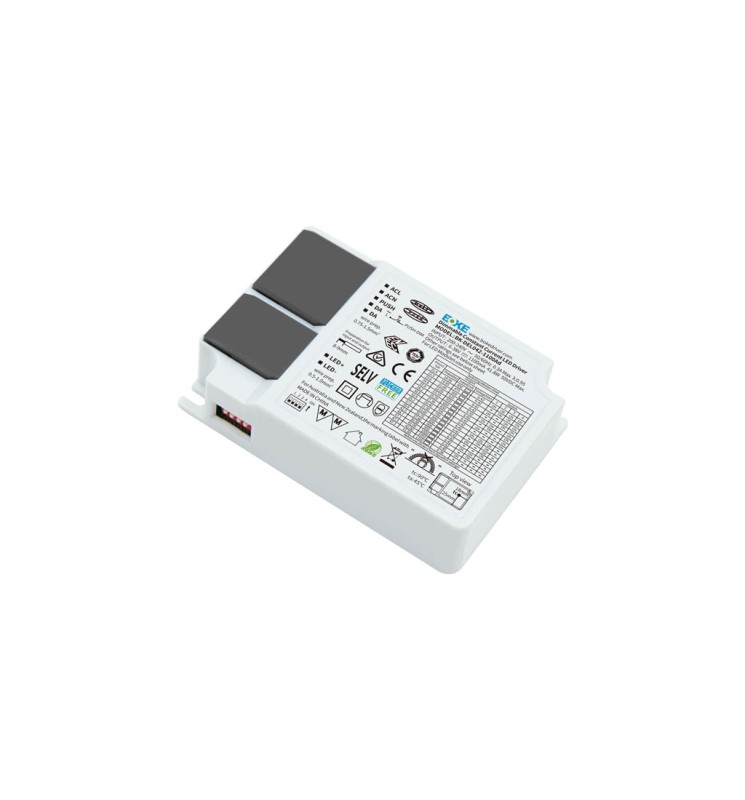

Dali Push Dim power supply
PL09302003
Data sheet
- Yes
- IP
- IP20
- Dimmable
- Yes
- IK
- IK02
- Warranty (years)
- 5
- Total power (W)
- 25 / 40
- Electric class
- II
- Power factor
- >0.95
- Rated voltage
- 230V
- Driver included
- Non
- Tiltable
- Non
- Length (mm)
- 137
- Width (mm)
- 46
- Height (mm)
- 30
- Weight (kg)
- 0.18
- Product color
- White
- Use temperature range
- -20°... +45°C
- Connection type
- Box DALI with fast connector (L-PE-N-DA1-DA2)
- IP (value)
- 20
- Recoverable
- Non recouvrable
- Dimmable values
- Dali, push dim
- Network frequency
- 60Hz, 50Hz
- Max. lamp per B10A circuit breaker
- 18
- Max. lamp per B16A circuit breaker
- 29
- Max. lamp per C16A circuit breaker
- 48
Dali Push Dim power supply
