• Rupture de stock

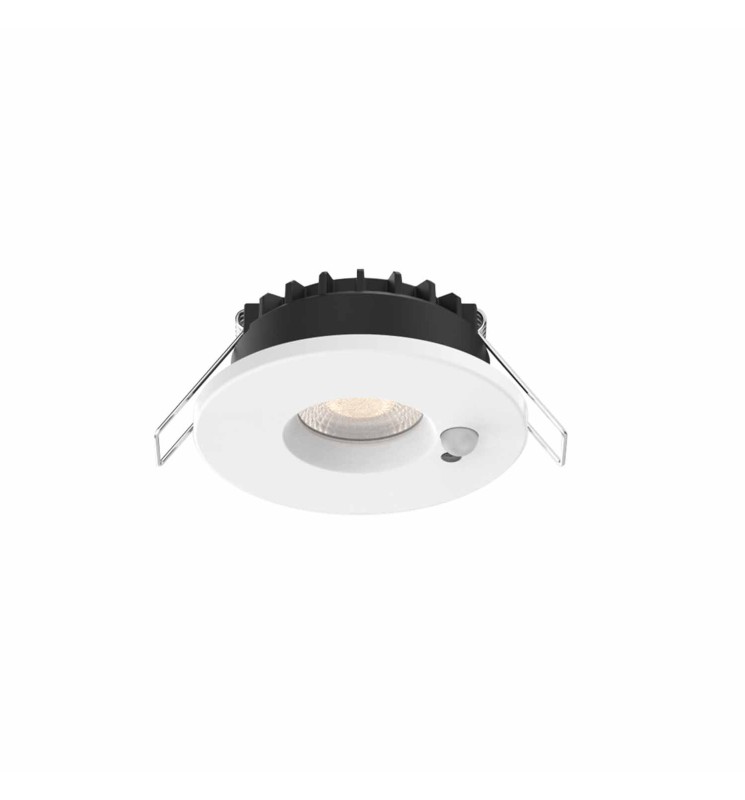

SPOT DETECTOR 7W-3CCT-IP65

BL01076505
Spotlight with integrated IR detector. Allows you to save energy and light only when you need it!
BL01076505
BE-LED

Data sheet

Luminous flux (lm)
IP20, 7800
IRC
>80
Dimmable
Yes
IK
IK07
Energy efficiency class
D
Warranty (years)
5
Total power (W)
7
Electric class
III, II with power supply
Power factor
>0.9
Rated voltage
230V
Light beam spread (°)
60
Luminous flux (lm)
580, 520, 560
Color temperature
4000K, 3000K, 2700K
Safety group (EN62778)
RG0
Driver included
Yes
Including the light source
Yes
Light source type
SMD
Tiltable
Non
Height (mm)
35
Min. recessed diameter (mm)
74
Max. recessed diameter (mm)
85
Recessed diameter
84, 85, 74, 75, 76, 77, 78, 79, 80, 81, 82, 83
Product color
White
Use temperature range
-25... +45°
Connection type
Bornier avec repiquage
IP (value)
20, 66
Body materials
Aluminium
Diffuser materials
PC
Life span duration
L70 à 25° : 50 000 h
Diameter (mm)
95
Recoverable
Isolant rouleau
Dimmable values
Triac
Network frequency
50Hz
Initial SDCM
SDCM>3
