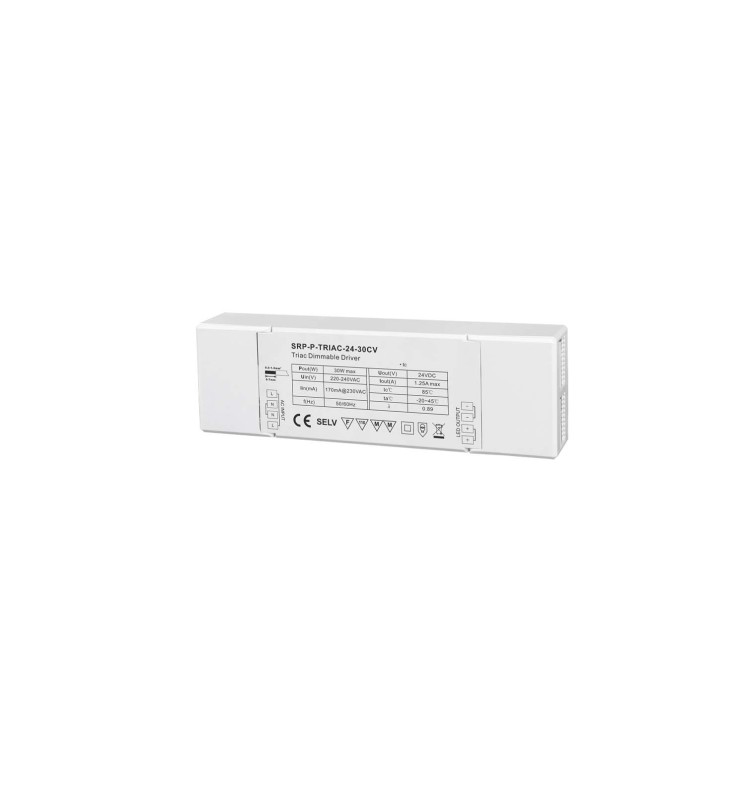

DRIVER TRIAC-24V-30W
BL09302406
Power supply in 24 Vdc dimmable Triac 30W. IP20, 5 years warranty.
BL09302406
Data sheet
- Yes
- IP
- IP20
- Dimmable
- Yes
- IK
- IK04
- Warranty (years)
- 5
- Total power (W)
- 30
- Electric class
- II
- Power factor
- >0.9
- Rated voltage
- 230V
- Driver included
- Non
- Tiltable
- Non
- Length (mm)
- 170
- Width (mm)
- 54
- Height (mm)
- 28
- Weight (kg)
- 0.2
- Product color
- White
- Use temperature range
- -25°... +45°C
- Connection type
- Connecteur rapide avec repiquage
- IP (value)
- 20
- Body materials
- PC
- Life span duration
- 50 000 h
- Recoverable
- Non recouvrable
- Dimmable values
- Triac
- Network frequency
- 50Hz, 60Hz
