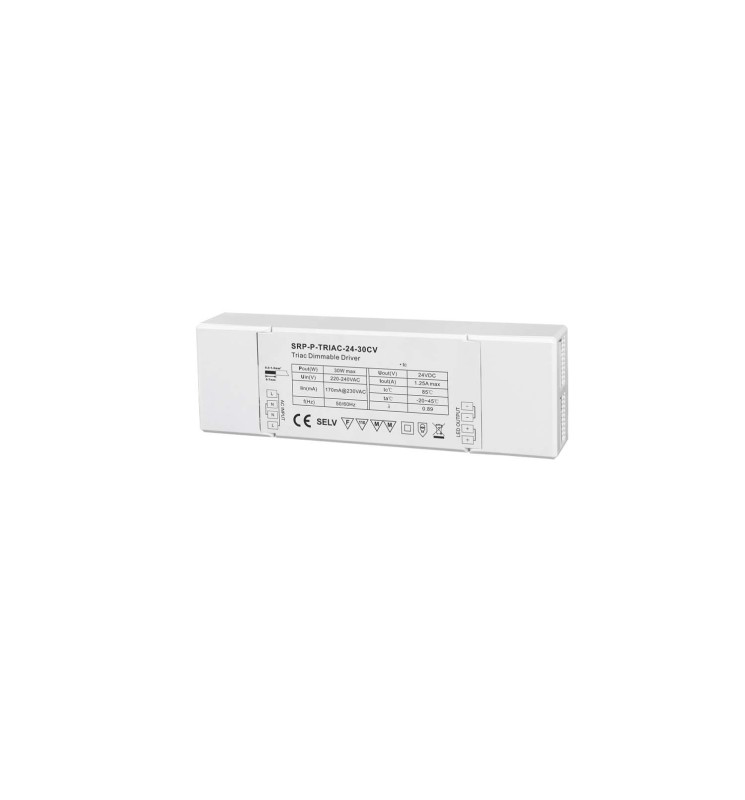

DRIVER TRIAC-24V-60W
BL09602407
Power supply in 24 Vdc dimmable Triac, 1 channel maximum 60W. IP20, 5 years warranty. Allows you to control the led strips with a TRIAC controller.
BL09602407
Data sheet
- Yes
- IP
- IP20
- Dimmable
- Yes
- IK
- IK04
- Warranty (years)
- 5
- Total power (W)
- 60
- Electric class
- II
- Power factor
- >0.95
- Rated voltage
- 230V
- Driver included
- Non
- Tiltable
- Non
- Length (mm)
- 210
- Width (mm)
- 50
- Height (mm)
- 32
- Weight (kg)
- 0.3
- Product color
- White
- Use temperature range
- -25°... +45°C
- Connection type
- Connector on the product
- IP (value)
- 20
- Body materials
- PC
- Life span duration
- 50 000 h
- Recoverable
- Non recouvrable
- Dimmable values
- Triac
- Network frequency
- 50Hz, 60Hz
