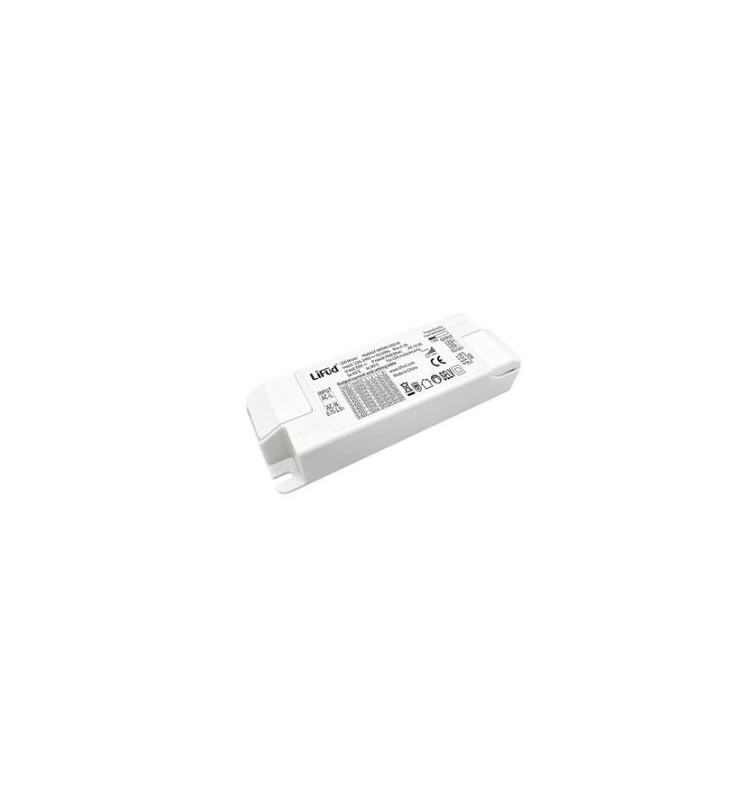

DRIVER LIFUD TRIAC-40W-700-1050mA
BL09402022

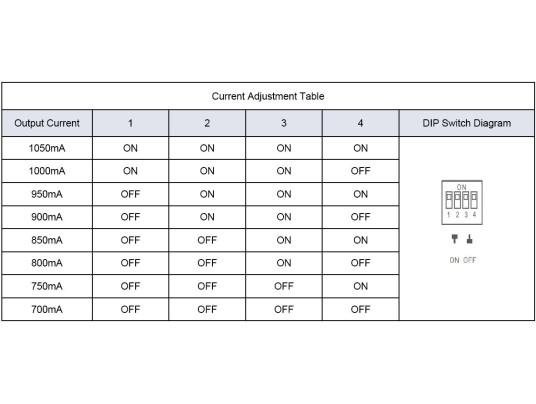

TRIAC 0 to 100% constant current power supply adjustable from 700mA to 1050mA (Iout). 40W max. Flicker free
BL09402022
Data sheet
- Yes
- Yes
- IP
- IP20
- Dimmable
- Yes
- IK
- IK06
- Warranty (years)
- 5
- Total power (W)
- 40
- Electric class
- II
- Power factor
- >0.95
- Rated voltage
- 230V
- Driver included
- Non
- Tiltable
- Non
- Length (mm)
- 155
- Width (mm)
- 52.5
- Height (mm)
- 29.5
- Weight (kg)
- 0.21
- Product color
- White
- Use temperature range
- -25°... +45°C
- Connection type
- Connector on the product
- IP (value)
- 20
- Body materials
- PC
- Recoverable
- Non recouvrable
- Dimmable values
- Triac
