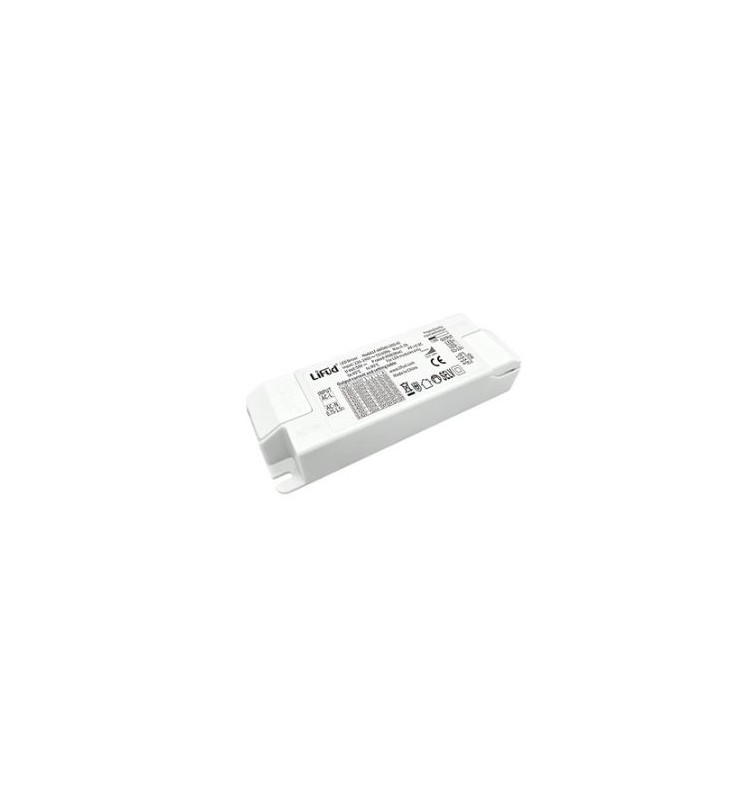

DRIVER-CC400750mA-1730W-942V-IP20-LIFUD-TRIAC
BL09302021

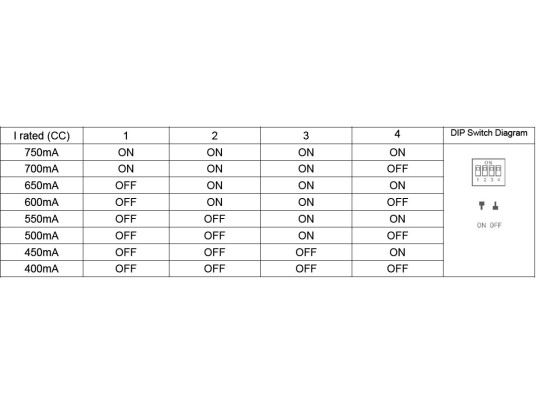

TRIAC 0 to 100% constant current power supply adjustable from 400mA to 7500mA (Iout). 30W max. Flicker free
BL09302021
Data sheet
- Yes
- IP
- IP20
- Dimmable
- Yes
- IK
- IK06
- Warranty (years)
- 5
- Total power (W)
- 30
- Electric class
- II
- Power factor
- >0.95
- Rated voltage
- 230V
- Driver included
- Non
- Tiltable
- Non
- Length (mm)
- 142
- Width (mm)
- 46
- Height (mm)
- 27.5
- Weight (kg)
- 0.14
- Product color
- White
- Use temperature range
- -25°... +45°C
- Connection type
- Connector on the product
- IP (value)
- 20
- Body materials
- PC
- Recoverable
- Non recouvrable
- Dimmable values
- Triac
