TF129-STREETLAMP TECH ASY 30W-3000K-IP65
BL10306504

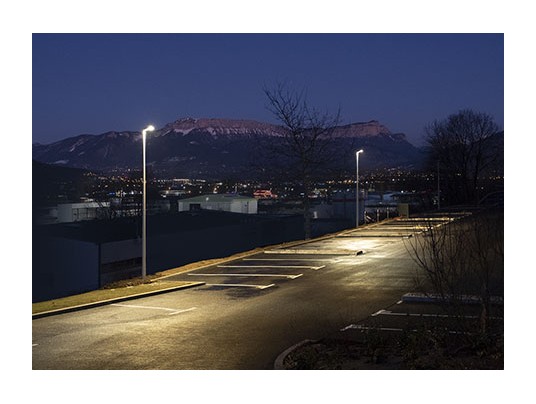

30W lantern with asymmetrical distribution 156° x 71°, ideal for car parks, private paths, access roads... 60 mm diameter nozzle.
BL10306504
Data sheet
- Yes
- IP
- IP65
- IRC
- >80
- Dimmable
- Non
- IK
- IK08
- Energy efficiency class
- D
- Warranty (years)
- 5
- Total power (W)
- 30
- Electric class
- I
- Power factor
- >0.95
- Rated voltage
- 230V
- Light beam spread (°)
- 156, 0% (With an installation that complies with anti-light pollution regulations)
- Luminous flux (lm)
- 3600
- Color temperature
- 3000K
- Safety group (EN62778)
- RG1
- Driver included
- Yes
- Including the light source
- Yes
- Light source type
- SMD
- Tiltable
- Yes
- Length (mm)
- 535
- Width (mm)
- 192
- Height (mm)
- 82.5
- Weight (kg)
- 4.88
- Product color
- Gray RAL 7035
- Use temperature range
- -20°... +50°C
- Connection type
- Fil à connecter
- IP (value)
- 65
- Body materials
- Aluminium
- Diffuser materials
- PC
- Life span duration
- L80 à 25° : 50 000 h
- Cable length
- 70 cm
- Tilt angle
- 40
- Network frequency
- 50Hz
- Initial SDCM
- SDCM< 4
