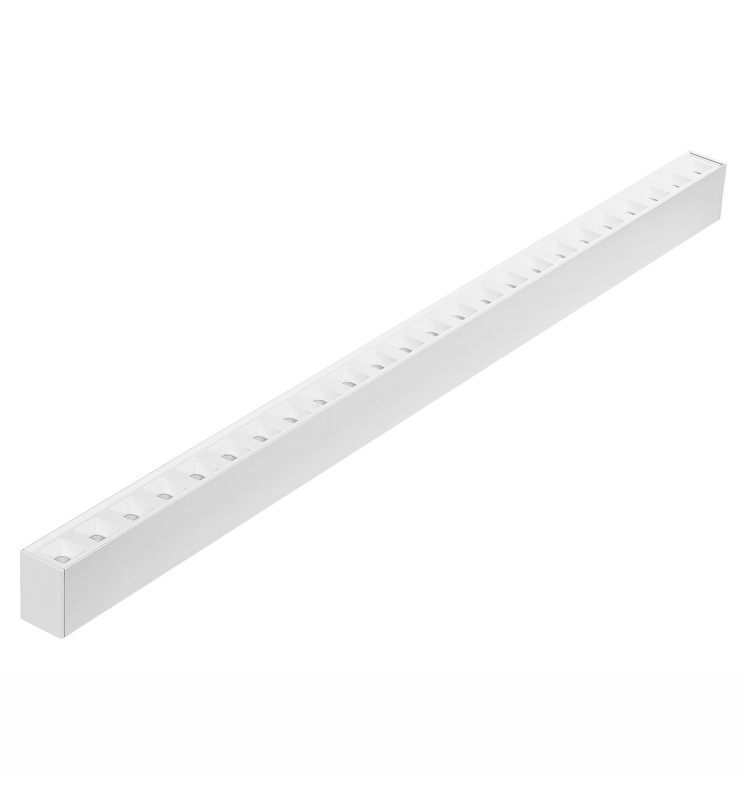

TF134-OFFICELINE 120-WHITE-30W-CCT-UGR19

Data sheet

Yes

IP

IP20

IRC

>80

Dimmable

Non

IK

IK06

Energy efficiency class

C

Warranty (years)

5

Total power (W)

28

Electric class

I

Power factor

>0.95

Rated voltage

230V

Light beam spread (°)

80

Luminous flux (lm)

3800, 3700, 4000

Color temperature

4000K, 3000K, 5700K

Safety group (EN62778)

RG1

Unified Glare Rating (UGR)

< 19

Driver included

Yes

Including the light source

Yes

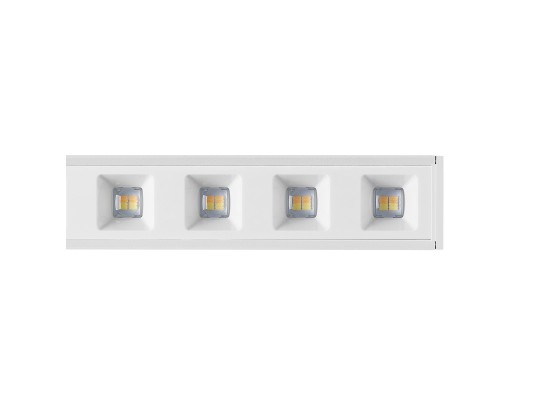

Light source type

COB

Tiltable

Non

Length (mm)

1130

Width (mm)

50

Height (mm)

72

Weight (kg)

1.78

Product color

White

Use temperature range

-20°... +45°C

Connection type

Fil à connecter

IP (value)

20

Body materials

Aluminium

Life span duration

L80 à 25° : 50 000 h

Cable length

130 cm

Recoverable

Non concerné

Dimmable values

Dali, push dim

Network frequency

50Hz, 60Hz

Initial SDCM

SDCM< 3

Max. lamp per B10A circuit breaker

8

Max. lamp per B16A circuit breaker

12

Max. lamp per C16A circuit breaker

16
